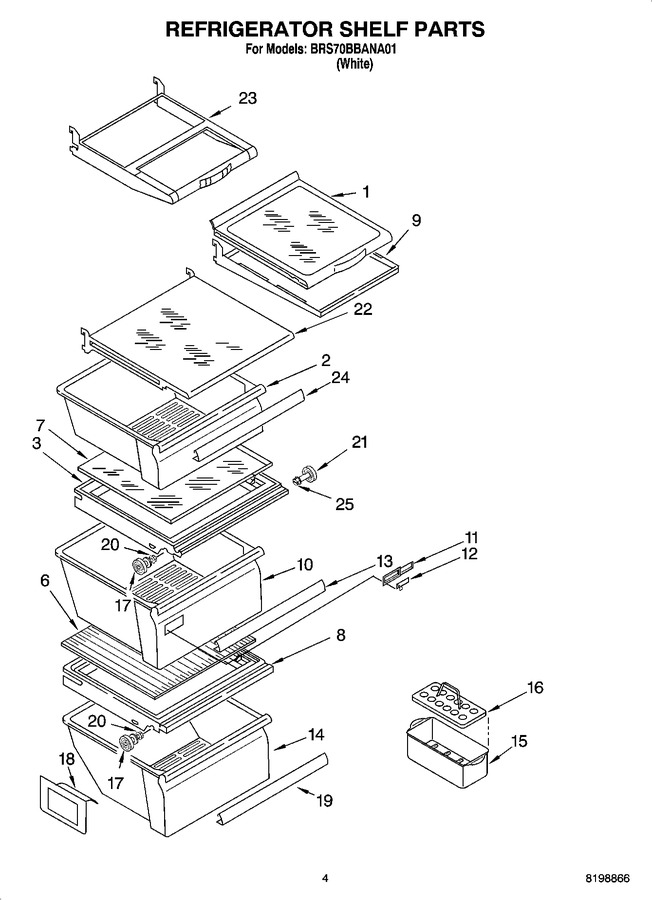

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141748		Shelf Assembly Glass Sliding   (Replaces: 2194736)				$ 321.89
2	W11497323		Snack Bin   (Replaces: 2188655)				$ 211.36
3	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 275.27
6	W10864399		Glass, Meat Cover   (Replaces: 2179259)				$ 208.83
7	W10864399		Glass, Crisper Cover   (Replaces: 2174150)				$ 208.83
8	2217039		Cover, Meat Pan		Appelez-nous	-
9	2317446		Frame, Shelf		Appelez-nous	-
10	WP2188656		Crisper Pan   (Replaces: 2188652)				$ 128.90
11	WP2179343		Front, Crisper Pan   (Replaces: 2179343)				$ 30.62
12	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 27.54
13	WP2179234		Trim, Handle   (Replaces: 2255593)				$ 79.71
14	WP2188664		Meat Pan   (Replaces: 2188654)			Immediately	$ 83.43
15	W10136387A		Egg Bin   (Replaces: 2216625)				$ 17.59
16	WP2177817		Egg Carrier   (Replaces: 2177817)				$ 16.90
17	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 13.29
18	2179350		Deflector				$ 77.30
19	WP2179234		Trim, Handle   (Replaces: 2255592)				$ 79.71
20	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.23
21	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 9.78
22	2317447		Shelf, Snack Bin		Appelez-nous	-
23	2317451		Shelf, Flip-up		Appelez-nous	-
24	WP2179243		Trim, Handle   (Replaces: 2179243)				$ 98.69
25	WP3400806		Screw   (Replaces: 8281158)				$ 7.29
