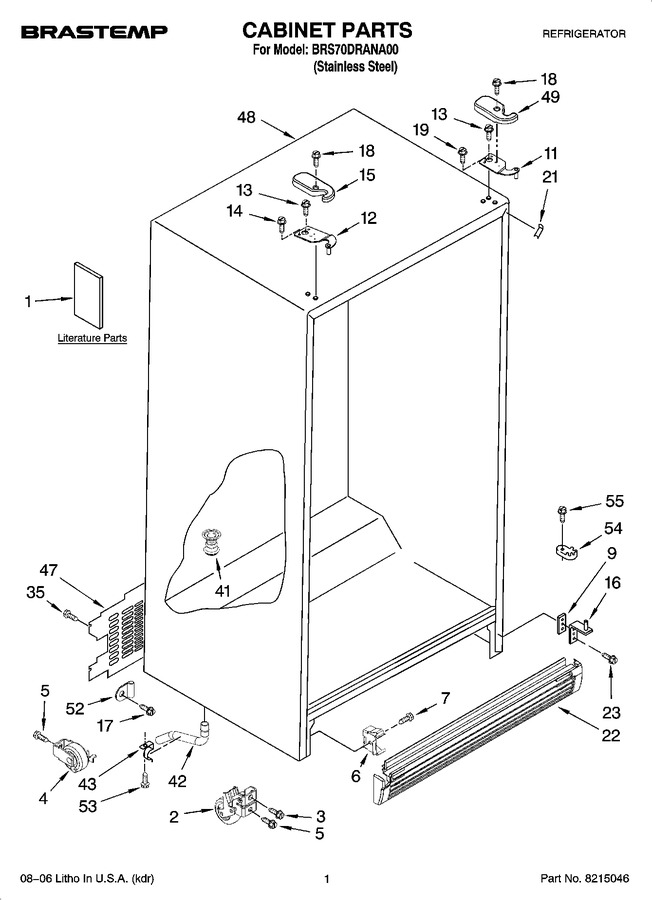

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2315153 | Installation Instructions |
|
- | |||||
| 1 | 2318378 | Use & Care Guide |
|
- | |||||
| 1 | 2261067 | Service & Wiring Sheet |
|
- | |||||
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | 2318379 | Energy Label |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 12.98 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 37.96 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.30 | ||||
| 7 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 9 | WP2181911 | Shim (2) (Replaces: 2156056) |
|
$ 31.38 | |||||
| 11 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 92.82 | |||||
| 12 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 90.27 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 14 | WP489128 | Screw (Replaces: 8281149) |
|
$ 10.26 | |||||
| 15 | 2203407AP | Hinge Cover, Fc |
|
- | |||||
| 16 | 2317455 | Hinge, Bottom (2) |
|
- | |||||
| 17 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 13.28 | ||||
| 18 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 9.86 | |||||
| 19 | 3400858 | Screw |
|
- | |||||
| 21 | 2315169 | Filler, Wrapper |
|
- | |||||
| 22 | 2198470AP | Grille |
|
- | |||||
| 23 | WP489497 | Screw (4) (Replaces: W10029670) |
|
Immediately | $ 26.18 | ||||
| 35 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 41 | W11566763 | Drain Fitting (Replaces: 940139) |
|
Immediately | $ 48.11 | ||||
| 42 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 29.61 | ||||
| 43 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 10.15 | |||||
| 47 | 2220758 | Cover, Unit |
|
- | |||||
| 49 | 2203408AP | Hinge Cover, Rc |
|
$ 89.27 | |||||
| 52 | W10833902 | Clamp, Service Cord (Replaces: 2305545) |
|
$ 10.39 | |||||
| 53 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.25 | |||||
| 54 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.31 | ||||
| 55 | WP489483 | Screw (2) (Replaces: W10029680) |
|
$ 10.27 |
