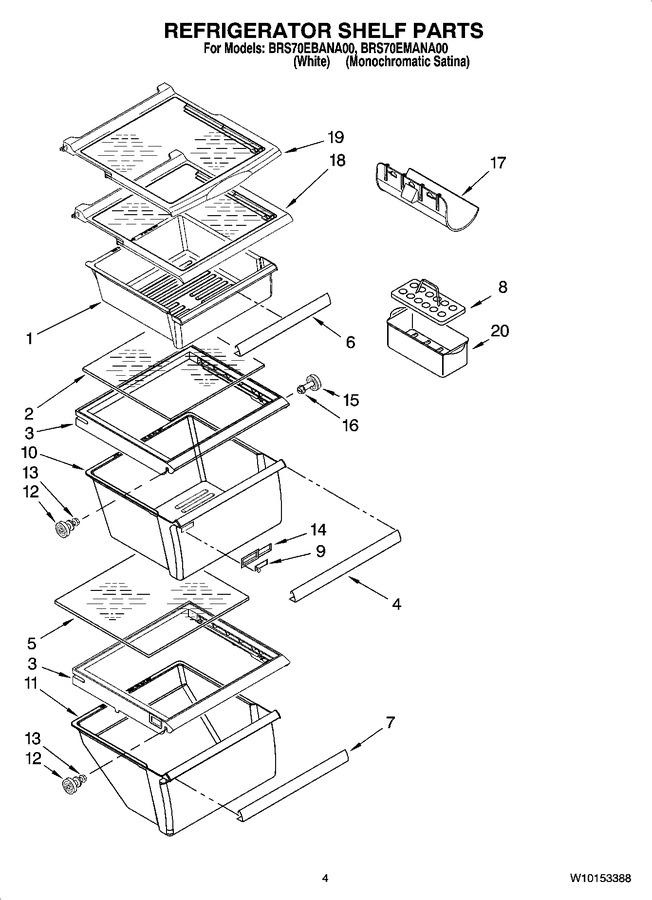

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2309517		Snack Pan   (Replaces: 2309518)				$ 119.75
2	W10864399		Glass, Cover   (Replaces: 2174150)				$ 208.83
3	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 275.27
4	WP2179234		Trim, Pan   (Replaces: 2255593)				$ 79.71
5	W10864399		Glass, Cover   (Replaces: 2179259)				$ 208.83
6	WP2179243		Trim, Handle   (Replaces: 2309519)				$ 98.69
7	WP2179234		Trim, Meat Pan   (Replaces: 2255592)				$ 79.71
8	W10139527		Egg Carrier		Appelez-nous	-
9	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 27.54
10	WP2188656		Crisper Pan   (Replaces: 2188652)				$ 128.90
11	WP2188664		Meat Pan   (Replaces: 2188654)			Immediately	$ 83.43
12	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 13.29
13	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.23
14	WP2179343		Housing, Humidity Control   (Replaces: 2179343)				$ 30.62
15	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 9.78
16	WP3400806		Screw   (Replaces: 8281158)				$ 7.29
17	W10777924		Wine Rack   (Replaces: 2311357)				$ 22.30
18	WPW10276341		Shelf Assembly, Spillguard   (Replaces: 2309523)				$ 239.27
19	WPW10276348		Shelf Assembly, Slide-out   (Replaces: 2309524)			Immediately	$ 236.99
20	W10136387A		Egg Bin   (Replaces: 2311722)				$ 17.59
