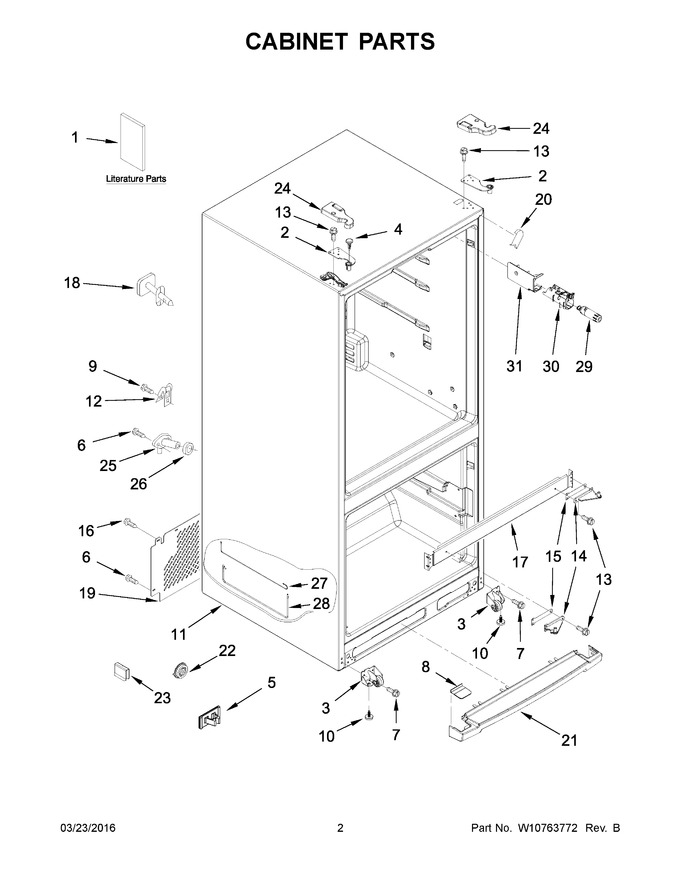

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10596096 | Service & Wiring Sheet |
|
- | |||||
| 2 | W10546298 | Hinge, Top (left Hand) |
|
$ 63.14 | |||||
| 3 | WPW10359256 | Roller, Front (left Hand) (Replaces: W10359256) |
|
Immediately | $ 46.65 | ||||
| 4 | WPW10520307 | Hole Plug (grey) (Replaces: W10520307) |
|
Immediately | $ 6.80 | ||||
| 5 | W11501419 | Clamp, Tube (Replaces: W10352217) |
|
Immediately | $ 10.89 | ||||
| 6 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WPW10353932 | Cover, Toe Grille (grey) (Replaces: W10353932) |
|
$ 76.95 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 10 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 11 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 12 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 14 | W10770878 | Hinge, Center (left Hand) |
|
Immediately | $ 74.07 | ||||
| 15 | WPW10450363 | Shim, Center Hinge (Replaces: W10450363) |
|
Immediately | $ 22.81 | ||||
| 16 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 17 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 18 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 19 | W10761060 | Cover, Unit |
|
$ 95.00 | |||||
| 20 | W10851579 | Filler, Corner (grey) (Replaces: W10283961) |
|
Immediately | $ 6.80 | ||||
| 21 | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 146.81 | ||||
| 22 | W10331226 | Drum, Toe Grille |
|
$ 42.68 | |||||
| 23 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.38 | |||||
| 24 | W10465768 | Cover, Hinge (left Hand (grey)) |
|
$ 18.48 | |||||
| 25 | WPW10601149 | Fitting, Water Tube (Replaces: W10601149) |
|
Immediately | $ 7.70 | ||||
| 26 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 27 | W11195038 | Tube, Filter Inlet (Replaces: W10740689) |
|
Immediately | $ 114.02 | ||||
| 28 | W10801011 | Tube, Filter Outlet (Replaces: W10667756) |
|
Immediately | $ 161.72 | ||||
| 29 | EDR1RXD1B | Filter, Water (Replaces: W10735398) |
|
Immediately | $ 49.99 | ||||
| 30 | W10844267 | Housing, Water Filter (Replaces: W10817430) |
|
Immediately | $ 133.02 | ||||
| 31 | WPW10306392 | Cover, Water Filter (Replaces: W10306392) |
|
$ 95.45 | |||||
| 14A | W11417064 | Hinge, Center (right Hand) (Replaces: W10770877) |
|
Immediately | $ 54.66 | ||||
| 1A | W10721953 | Energy Guide |
|
- | |||||
| 1B | W10721949 | Use & Care Guide |
|
- | |||||
| 1C | 2225623 | Icemaker Service Sheet |
|
- | |||||
| 24A | W10465767 | Cover, Hinge (right Hand (grey)) |
|
Immediately | $ 19.31 | ||||
| 2A | W11573371 | Hinge, Top (right Hand) (Replaces: W10546299) |
|
Immediately | $ 22.38 | ||||
| 3A | WPW10359255 | Roller, Front (right Hand) (Replaces: W10359255) |
|
Immediately | $ 90.58 |
