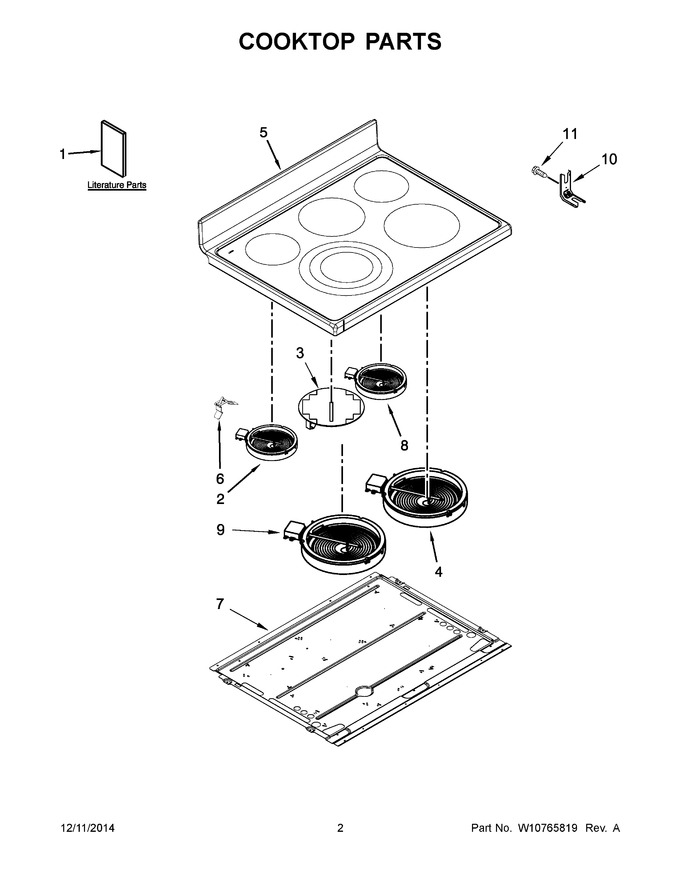

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10430958		Instructions, Installation		Appelez-nous	-
2	W11171119		Element (1200w) (left Rear)   (Replaces: 8273994)			Immediately	$ 213.20
3	WP9762851		Element, Warm Zone (120v) (center)   (Replaces: 9762851)			Immediately	$ 261.32
4	WPW10251107		Element (3200w) (right Front)   (Replaces: W10631481)				$ 321.84
5	W10336329		Cooktop (stainless)   (Replaces: W10260155)			Immediately	$ 613.67
6	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.82
7	WPW10260946		Support, Element   (Replaces: W10260946)				$ 121.59
8	WPW10270604		Element (700w) (right Rear)   (Replaces: W10270604)				$ 201.13
9	W11101459		Element (2700w) (left Front)   (Replaces: W10259005)			Immediately	$ 203.86
10	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.50
11	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 27.65
1A	W10430931		Guide, Use & Care		Appelez-nous	-
1B	W10340587		Sheet, Tech (english)		Appelez-nous	-
1C	W10340588		Sheet, Tech (french)		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10340524		Harness, Main				$ 213.19
NI	W10225701		Harness, Sensor				$ 165.74
NI	W10631472		Harness, Cooktop		Appelez-nous	-
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 4.56
NI	WPW10281322		Block, Bare Wire Adapter   (Replaces: 7401P157-60)				$ 7.98
NI	W11226497		Cord, Power   (Replaces: W10233363)			Immediately	$ 99.50
NI	8019P026-60		Clip, Wire		Appelez-nous	-
