01 - Cover Sheet
02 - Cooktop Parts

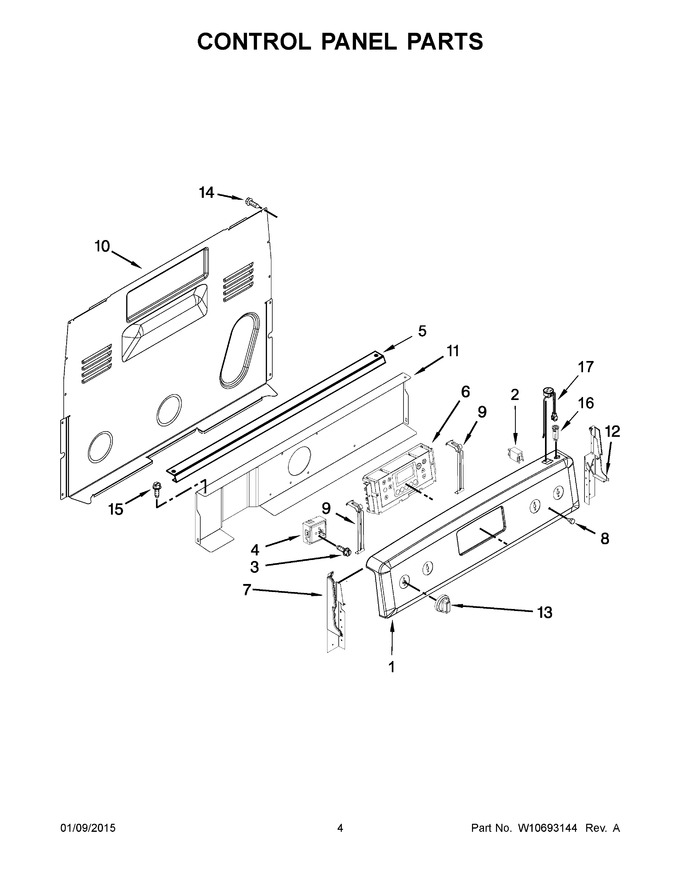

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10655879 | Panel, Backguard (white) |
|
$ 130.20 | |||||
| 2 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 5 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 6 | WPW10655829 | Control Board (white) (Replaces: W10655829) |
|
$ 247.75 | |||||
| 7 | W11219365 | End Cap (white (left Hand)) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 8 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10324410) |
|
Immediately | $ 76.33 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 12 | W11219370 | End Cap (white (right Hand)) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 13 | WPW10666901 | Knob (stainless) (Replaces: W10666901) |
|
$ 140.36 | |||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 16 | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 17 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 100.00 | ||||
| 12A | W11219665 | End Cap (black (right Hand)) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 16A | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 17A | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 16.62 | ||||
| 1A | W10655880 | Panel, Backguard (black) |
|
$ 139.55 | |||||
| 1B | W10655881 | Panel, Backguard (stainless) |
|
$ 141.34 | |||||
| 4A | WPW10434452 | Switch, Infinite (left Front) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 4B | WPW10411934 | Switch, Infinite (right Front) (Replaces: W10411934) |
|
Immediately | $ 98.85 | ||||
| 6A | WPW10655832 | Control Board (black) (Replaces: W10655832) |
|
$ 249.60 | |||||
| 6B | WPW10655837 | Control Board (stainless) (Replaces: W10655837) |
|
$ 451.00 | |||||
| 7A | W11219664 | End Cap (black (left Hand)) (Replaces: W10184437) |
|
Immediately | $ 138.45 |
