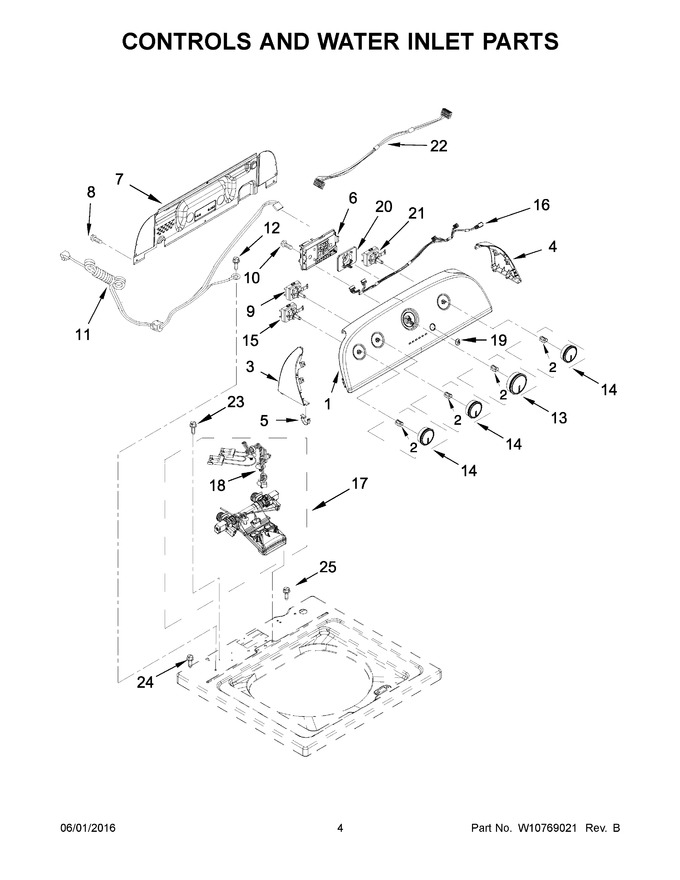

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11089974 | Panel, Console (Replaces: W10692535) |
|
$ 524.84 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | WPW10520782 | End Cap (left) (white) (Replaces: W10520782) |
|
$ 58.22 | |||||
| 4 | WPW10520780 | End Cap (right) (white) (Replaces: W10520780) |
|
$ 57.91 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 15.66 | ||||
| 6 | W10711300 | Control Unit Assembly, Machine And Motor |
|
$ 368.80 | |||||
| 7 | W10552335 | Panel, Console Rear Cover |
|
$ 308.85 | |||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 9 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 142.31 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 11 | WPW10525194 | Cord, Power (Replaces: W10525194) |
|
$ 147.07 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | W11501455 | Knob, Timer (white/metallic) (Replaces: W10770866) |
|
$ 41.20 | |||||
| 14 | W11176265 | Assembly, Control Knob (white/metallic) (Replaces: W10770858) |
|
$ 47.16 | |||||
| 15 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 163.89 | ||||
| 16 | W11211519 | Harness, Upper (Replaces: W10694680) |
|
$ 166.32 | |||||
| 17 | WPW10683603 | Inlet Assembly, Water (Replaces: W10683680) |
|
Immediately | $ 84.60 | ||||
| 18 | W10876654 | Harness, Valve (Replaces: W10684972) |
|
$ 175.43 | |||||
| 19 | W11084340 | Grommet, Push To Start (Replaces: W10598040) |
|
$ 66.47 | |||||
| 20 | WPW10596298 | Button, Push To Start (Replaces: W10596298) |
|
$ 65.68 | |||||
| 21 | WPW10285512 | Switch, Rotary Encoder (4 Position) (Replaces: W10285512) |
|
Immediately | $ 171.42 | ||||
| 22 | W11752208 | Harness, Upper E-star (Replaces: W10694672) |
|
$ 19.67 | |||||
| 23 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 6.80 | ||||
| 24 | WP3400818 | Screw (Replaces: 3400818) |
|
$ 7.93 | |||||
| 25 | 3400073 | Screw |
|
- |
