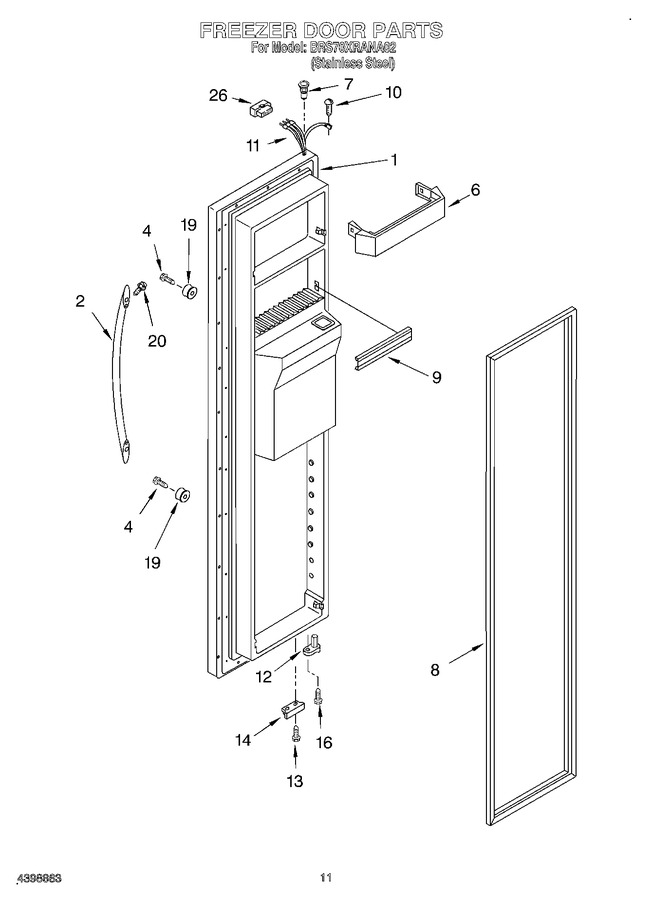

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205950S		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2204454		Handle (includes Item 20)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
6	2204072		Trivet, Shelf (4)		Appelez-nous	-
7	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
8	2159082		Door Gasket, Magnetic (service)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2187274		Wiring Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2195952		Bracket, Door Stop		Appelez-nous	-
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
19	2203690		Stud, Handle		Appelez-nous	-
20	98654		Set Screw		Appelez-nous	-
26	WP2154473		Connector   (Replaces: 2154473)				$ 24.83

    View Diagram in Separate Window       Print Part List
