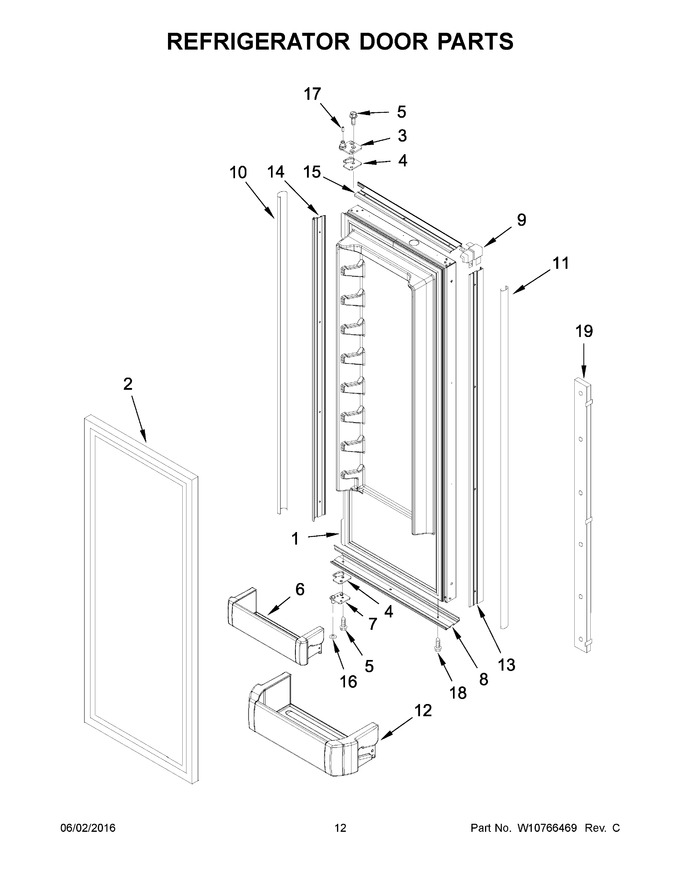

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10782300		Door, Refrigerator (left Hand)   (Replaces: W10707739)				$ 1,013.28
2	W10871887		Gasket, Door (grey)   (Replaces: W10629728)				$ 289.24
3	W11673500		Assembly, Top Hinge   (Replaces: 2320642)			Immediately	$ 117.33
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	W10707724		Bin, Door (shallow)		Appelez-nous	-
7	W10273369		Assembly, Bottom Hinge (left Hand)				$ 37.09
8	W10570040		Trim, Door (bottom)		Appelez-nous	-
9	2207457		Trim, Corner				$ 51.41
10	2266942S		Cover, Trim (hinge Side)				$ 97.89
11	2209084S		Cover, Trim (handle Side)				$ 123.06
12	W10707726		Bin, Door (gallon)				$ 71.33
13	2314030S		Trim, Door (handle Side)				$ 251.12
14	2309031S		Trim, Door (hinge Side)				$ 362.19
15	W10570038		Trim, Door (top)		Appelez-nous	-
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
17	W11500952		Bushing, Door Stop   (Replaces: 2316760)			Immediately	$ 31.27
18	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
19	W10732107		Assembly, Mullion				$ 264.77
1A	W10782301		Door, Refrigerator (right Hand)   (Replaces: W10707741)				$ 1,012.91
7A	W10273367		Assembly, Bottom Hinge (right Hand)				$ 37.14
