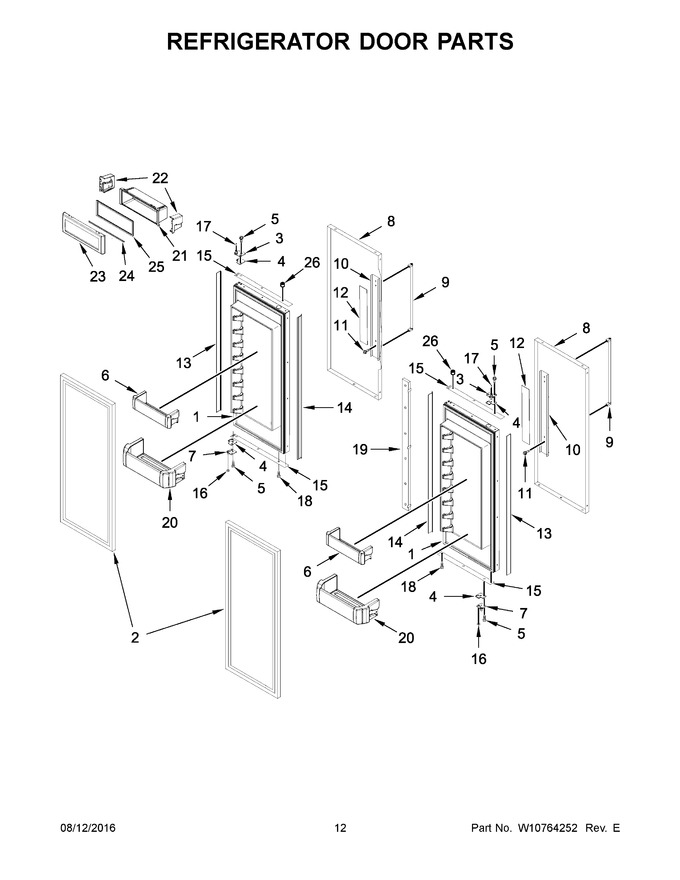

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10707769 | Door, Refrigerator (left Hand) |
|
- | |||||
| 2 | W10600741 | Gasket, Door (grey) |
|
$ 228.32 | |||||
| 3 | W11673500 | Assembly, Top Hinge (Replaces: 2320642) |
|
Immediately | $ 130.37 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 130.37 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 6 | W10323598 | Bin, Door |
|
$ 104.79 | |||||
| 7 | W10273369 | Assembly, Bottom Hinge (left Hand) |
|
$ 41.21 | |||||
| 8 | W11797627 | Skin, Door (stainless) (Replaces: W10541583) |
|
- | |||||
| 9 | W10783284 | Handle, Door (stainless) (Replaces: W10541592) |
|
$ 216.71 | |||||
| 10 | W10127710 | Plate, Handle Door |
|
Immediately | $ 25.94 | ||||
| 11 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 12 | 2309218 | Filler, Foam |
|
- | |||||
| 13 | W10600734 | Spacer, Door Edge (hinge Side) |
|
$ 297.16 | |||||
| 14 | W10600736 | Spacer, Door Edge (handle Side) |
|
$ 303.66 | |||||
| 15 | W10600732 | Spacer, Door (top/bottom) |
|
$ 168.98 | |||||
| 16 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 17 | W11500952 | Bushing, Door Stop (Replaces: 2316760) |
|
Immediately | $ 34.74 | ||||
| 18 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 19 | W10757111 | Assembly, Mullion |
|
$ 123.26 | |||||
| 20 | W10323746 | Bin, Gallon Door |
|
$ 108.24 | |||||
| 21 | WPW10323035 | Bin, Utility Center (Replaces: W10323035) |
|
$ 84.93 | |||||
| 22 | WPW10323173 | Cap, End (left Hand) (Replaces: W10323173) |
|
$ 8.60 | |||||
| 23 | WPW10131132 | Door, Utility Bin (Replaces: W10131132) |
|
$ 75.81 | |||||
| 24 | 2222795 | Rail, Utility Lid |
|
$ 84.11 | |||||
| 25 | WP2222981 | Gasket, Utility Bin (Replaces: 2222981) |
|
$ 214.40 | |||||
| 26 | 2005433 | Spacer, Door Skin (top) |
|
$ 23.33 | |||||
| 1A | W10707770 | Door, Refrigerator (right Hand) |
|
- | |||||
| 22A | WPW10323172 | Cap, End (right Hand) (Replaces: W10323172) |
|
$ 8.60 | |||||
| 7A | W10273367 | Assembly, Bottom Hinge (right Hand) |
|
$ 41.27 |
