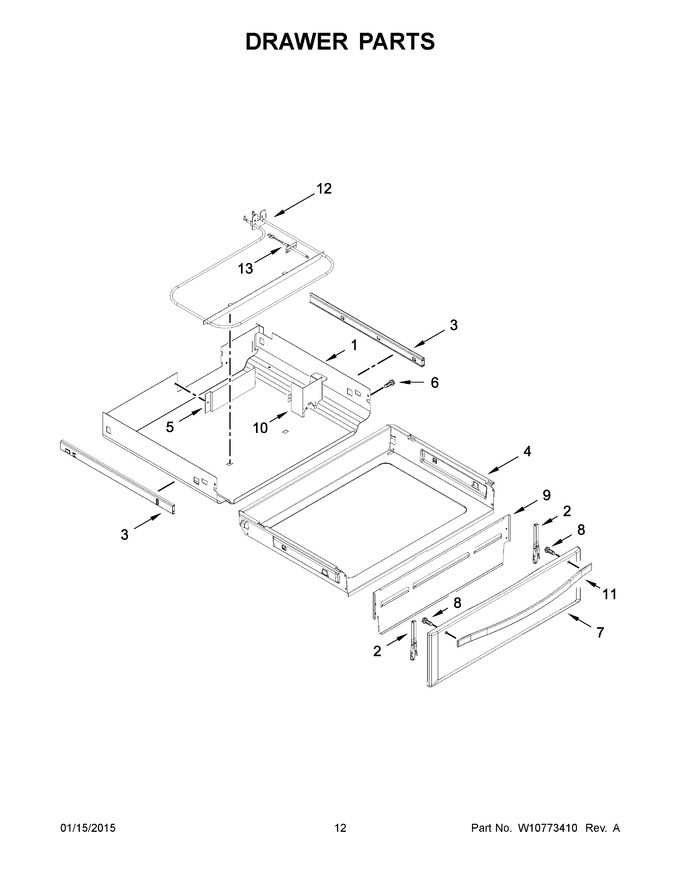

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10634260 | Enclosure, Warming |
|
Immediately | $ 188.12 | ||||
| 2 | WPW10318026 | Bracket, Mounting (Replaces: W10318026) |
|
$ 35.34 | |||||
| 3 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 97.38 | ||||
| 4 | W10813962 | Drawer, Storage (Replaces: W10663433) |
|
Immediately | $ 124.34 | ||||
| 5 | W10325438 | Cover, Panel |
|
$ 141.29 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | W10859916 | Panel, Drawer Front (stainless) (Replaces: W10330049) |
|
$ 191.02 | |||||
| 8 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 9 | W10748082 | Panel, Inner |
|
$ 183.96 | |||||
| 10 | W10634259 | Cover, Wire |
|
$ 79.06 | |||||
| 11 | WPW10289076 | Handle, Drawer (stainless) (Replaces: W10289076) |
|
$ 301.15 | |||||
| 12 | WPW10323181 | Element, Warm (Replaces: W10323181) |
|
$ 118.87 | |||||
| 13 | WPW10131827 | Sensor, Oven (Replaces: W10131827) |
|
$ 248.02 | |||||
| 3A | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 97.32 |
