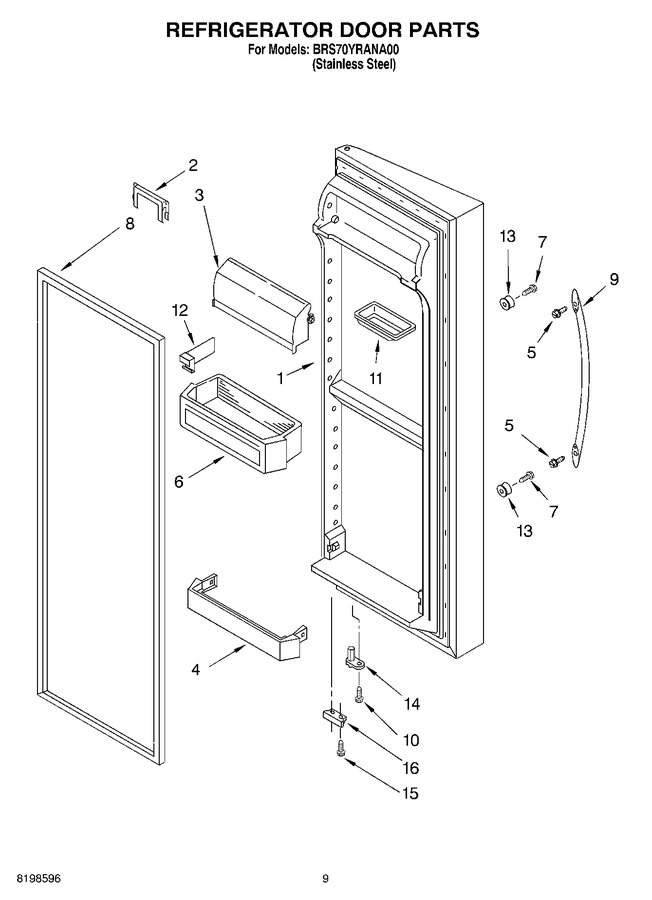

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254938SB		Refrigerator Door (includes Item 8)		Appelez-nous	-
2	2173643		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 78.61
5	98654		Screw		Appelez-nous	-
6	WPW10321304		Shelf Bin (3)   (Replaces: 2179607)			Immediately	$ 44.95
7	WP488163		Screw   (Replaces: 488208)				$ 7.92
8	2159083		Door Gasket, Magnetic (service)   (Replaces: 2221313)				$ 332.76
9	2188635S		Handle		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	2165792		Butter, Dish		Appelez-nous	-
12	2195496		Divider, Bin		Appelez-nous	-
13	2203690		Stud, Handle		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2200082B		Bracket, Door Stop				$ 42.44
