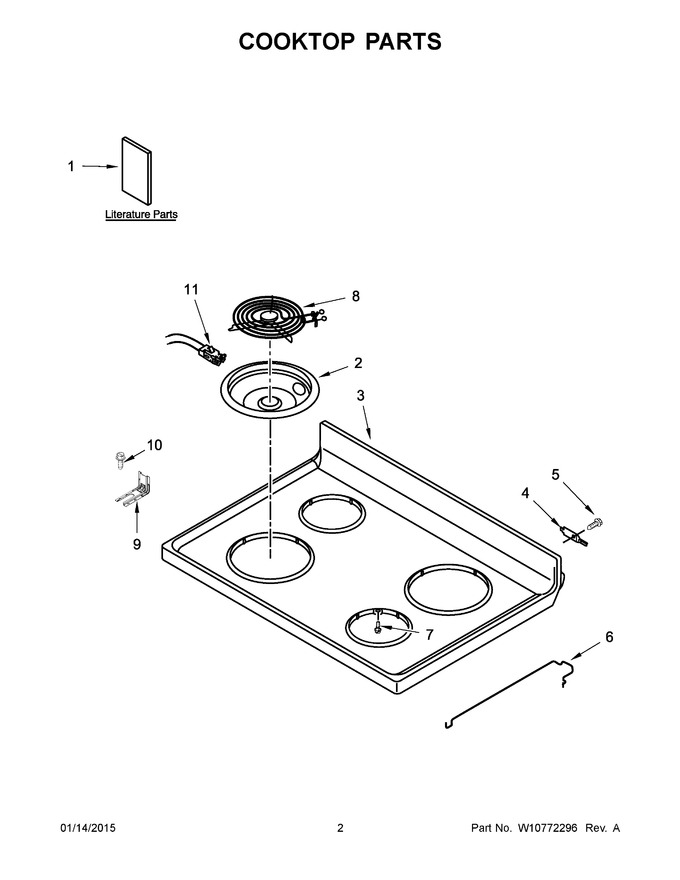

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403812		Instructions, Installation		Appelez-nous	-
2	WPW10196406		Bowl, Drip (6") (right Front And Left Rear)   (Replaces: W10196406)			Immediately	$ 13.39
3	8195534		Cooktop (black)   (Replaces: 3186233)				$ 458.94
4	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	WP3195812		Rod, Support   (Replaces: 3195812)			Immediately	$ 8.73
7	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
8	W11168414		Element, Surface (6") (right Front And Left Rear)   (Replaces: W10259870)			Immediately	$ 154.49
9	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
10	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 30.72
11	814399		Receptacle, Element			Immediately	$ 38.87
1A	W10361708		Use And Care Guide (sheet, Tech (english))		Appelez-nous	-
1B	W10361709		Use And Care Guide (sheet, Tech (french))		Appelez-nous	-
1C	9762761		Use And Care Guide (tips, Safe Cooking (english))		Appelez-nous	-
1D	W10065852		Use And Care Guide (tips, Safe Cooking (french))		Appelez-nous	-
2A	WPW10196405		Bowl, Drip (8") (left Front And Right Rear)   (Replaces: W10196405)			Immediately	$ 17.29
3A	8195532		Cooktop (white)   (Replaces: 3186231)				$ 377.38
8A	W11161939		Element, Surface (8") (left Front And Right Rear)   (Replaces: W10259867)			Immediately	$ 168.63
NI	W11232223		Harness, Door Switch Sensor   (Replaces: W10174459)				$ 216.04
NI	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11188389		Harness, Main   (Replaces: W10251763)				$ 160.55
NI	WPW10295595		Harness, Cooktop   (Replaces: W10295595)			Immediately	$ 156.06
