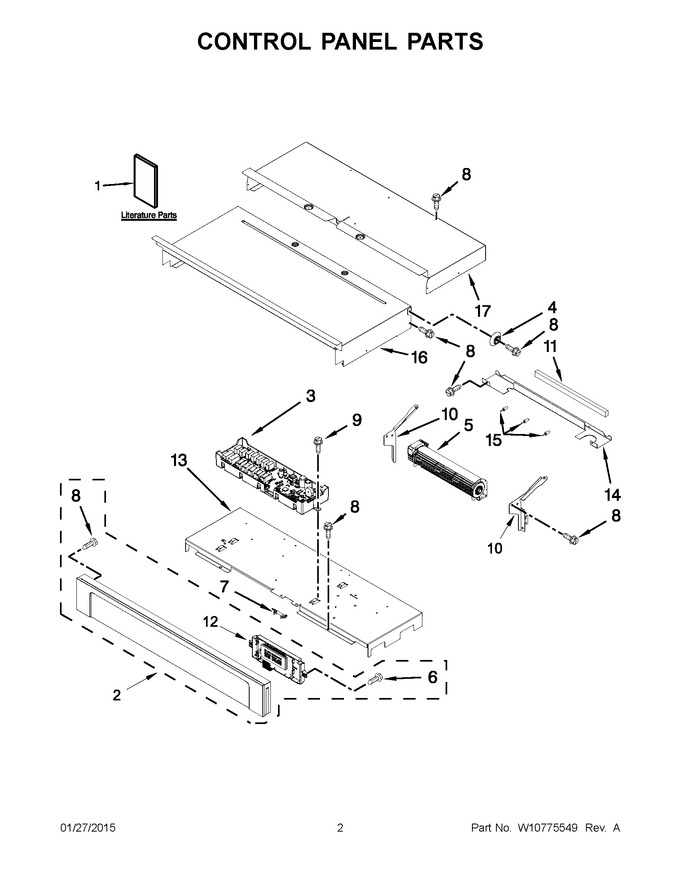

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10351242 | Instructions, Installation |
|
- | |||||
| 2 | W10660585 | Assembly, Control Panel (includes Overlay) (stainless) |
|
- | |||||
| 3 | WPW10734525 | Board, Main Mrc2 (Replaces: W10734525) |
|
$ 342.14 | |||||
| 4 | W10363824 | Spacer, Lateral |
|
- | |||||
| 5 | WPW10661038 | Blower (lower) (Replaces: W10661038) |
|
$ 233.31 | |||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 7.88 | ||||
| 7 | WPW10545291 | Fuse, Thermal (Replaces: W10545291) |
|
Immediately | $ 31.95 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | W10532438 | Board, Display Mrc2 |
|
$ 431.08 | |||||
| 13 | W10347650 | Tray, Electronic |
|
$ 113.47 | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 19.91 | |||||
| 16 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 124.93 | |||||
| 17 | W10904156 | Chassis, Cover Top Back 30 (Replaces: W10694465) |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10669241 | Guide, Use & Care |
|
- | |||||
| 1B | W10733500 | Sheet, Tech |
|
- | |||||
| 5A | W10641253 | Blower (upper) |
|
$ 127.63 | |||||
| NI | W11157177 | Harness, Signal (Replaces: W10284931) |
|
$ 208.38 | |||||
| NI | W10679413 | Jumper Tod |
|
- | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 36.64 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | 4452400 | Strap, Lead Ground |
|
$ 40.88 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10730963 | Harness, Main |
|
- | |||||
| NI | W10573327 | Harness, Door Latch |
|
$ 60.90 | |||||
| NI | W11157775 | Harness, Eol (mrc) (Replaces: W10409840) |
|
$ 208.52 |
