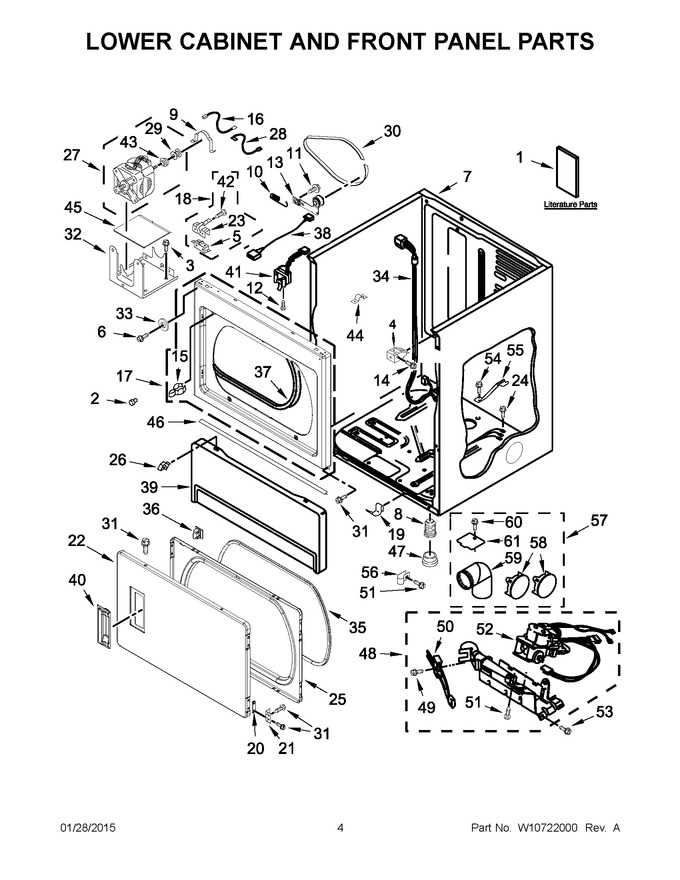

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10761033 | Installation Instructions |
|
- | |||||
| 2 | 693152 | Bumper |
|
$ 10.36 | |||||
| 3 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 7.62 | ||||
| 4 | 3391846 | Clip, Front Panel |
|
$ 19.99 | |||||
| 5 | 279782 | Switch - Belt (Replaces: 3394881) |
|
Immediately | $ 52.57 | ||||
| 6 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 6.56 | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 396.15 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.40 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.71 | |||||
| 13 | WPW10344193 | Pulley-idler Assembly (Replaces: W10344193) |
|
Immediately | $ 79.16 | ||||
| 14 | 681615 | Screw (Replaces: 3391915) |
|
$ 13.11 | |||||
| 15 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 16 | W10167612 | Wire, Belt Switch |
|
$ 12.08 | |||||
| 17 | W10242810 | Panel, Front (white) (Replaces: W10192882) |
|
$ 348.00 | |||||
| 18 | 279782 | Switch Assembly (Replaces: 8066134) |
|
Immediately | $ 52.57 | ||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 7.33 | |||||
| 20 | W10191265 | Plug, Hinge (white) |
|
$ 41.84 | |||||
| 21 | WPW10279703 | Hinge & Pin Assembly (silver) (Replaces: W10279703) |
|
$ 68.25 | |||||
| 22 | W11663440 | Door, Front (Replaces: W10322546) |
|
$ 245.11 | |||||
| 23 | WP8066120 | Lever Switch (Replaces: 8066120) |
|
Immediately | $ 31.29 | ||||
| 24 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 25 | 280083 | Door, Rear (Replaces: W10323061) |
|
$ 271.23 | |||||
| 26 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 27 | W10841144 | Motor (Replaces: W10396031) |
|
Immediately | $ 255.66 | ||||
| 28 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 58.19 | |||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 45.92 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 31 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 126.24 | |||||
| 33 | W11089212 | Washer (Replaces: 3392186) |
|
$ 9.95 | |||||
| 34 | W10702046 | Harness |
|
- | |||||
| 35 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 123.42 | |||||
| 36 | 279570 | Assembly, Door Catch (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 37 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 38 | 8283298 | Jumper, Door Switch |
|
$ 79.13 | |||||
| 39 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 225.23 | |||||
| 40 | W11209427 | Handle, Door (Replaces: W10116360) |
|
Immediately | $ 71.59 | ||||
| 41 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 56.37 | ||||
| 42 | WP98129 | Screw (Replaces: 98129) |
|
$ 7.36 | |||||
| 43 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 44 | WP98997 | Clip (Replaces: 98997) |
|
$ 10.48 | |||||
| 45 | W11113654 | Motor, Sound Pad (Replaces: W10212660) |
|
$ 20.96 | |||||
| 46 | W10576519 | Seal, Deflector |
|
- | |||||
| 47 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.39 | |||||
| 48 | 3401797 | Burner Assembly (60 Hz) |
|
- | |||||
| 49 | WPW10366705 | Screw (Replaces: 3393909) |
|
$ 7.09 | |||||
| 50 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 51 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 6.80 | ||||
| 52 | 279923 | Valve, Gas (complete) 60 Hz (Replaces: 8281911) |
|
Immediately | $ 257.43 | ||||
| 53 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 54 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 55 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 56 | 3387561 | Clamp, Pipe |
|
- | |||||
| 57 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.75 | ||||
| 58 | W10470674 | Multivent Plug (white) (Replaces: 697750) |
|
Immediately | $ 76.75 | ||||
| 59 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 25.34 | |||||
| 60 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.45 | ||||
| 61 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.47 | |||||
| 1A | W10738549 | Wiring Diagram |
|
- |
