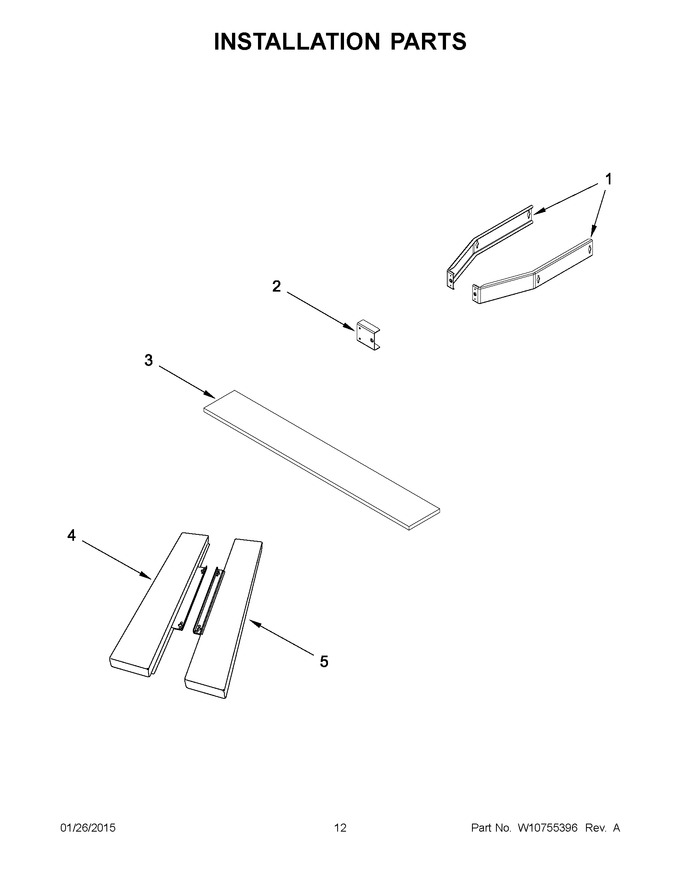

07 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10775910 | Bracket, Mounting (Replaces: 461967011821) |
|
$ 104.73 | |||||
| 2 | W10731693 | Tip, Mounting Bracket |
|
$ 65.03 | |||||
| 3 | W10515721 | Rail, Distance |
|
- | |||||
| 4 | W10731694 | Assembly, Side Strip (left) |
|
$ 204.49 | |||||
| 5 | W10721489 | Assembly, Side Strip (right) |
|
$ 234.44 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 8205750 | Wiring Harness Parts, Harness, Lamp |
|
$ 199.03 | |||||
| NI | W11356974 | Wiring Harness Parts, Harness, Interlock Switch (Replaces: 461968972782) |
|
$ 151.04 | |||||
| NI | W10737669 | Kit, Screw |
|
$ 31.91 | |||||
| NI | 8205751 | Wiring Harnss Parts, Harness, Fan & Turntable Motor |
|
$ 88.56 | |||||
| NI | W11356971 | Wiring Harness Parts, Harness, Sensor (Replaces: W10491630) |
|
$ 102.11 | |||||
| NI | W10615910 | Wiring Harness Parts, Harness, Wire Pcb To Inverter (Replaces: 8205014) |
|
$ 222.28 |
