Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left)) Special Order $ 83.56

2 W10776098 Cover, Backguard Special Order $ 122.23

3 W11164063 Console (stainless)   (Replaces: W10645854) In-Stock Immediately $ 466.76

4 WPW10067840 Screw   (Replaces: W10067840) Special Order $ 7.47

5 WPW10648866 Control, Electronic   (Replaces: W10648866) In-Stock Immediately $ 374.44

6 W10278697 Shield, Vent In-Stock Immediately $ 165.00

7 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 6.80

8 W10692425 Assembly, Overlay (black) Special Order $ 807.36

9 WPW10299338 Shield, Wire Cover   (Replaces: W10299338) Special Order $ 86.94

10 WPW10292689 Shield, Wire Cover   (Replaces: W10292689) Special Order $ 85.82

11 W11164063 Skin, Control Panel (stainless)   (Replaces: W10645842) In-Stock Immediately $ 466.76

1A W10319111 Support, Backguard (black) (right)) Special Order $ 43.80


    View Diagram in Separate Window     Print Icon   Print Part List

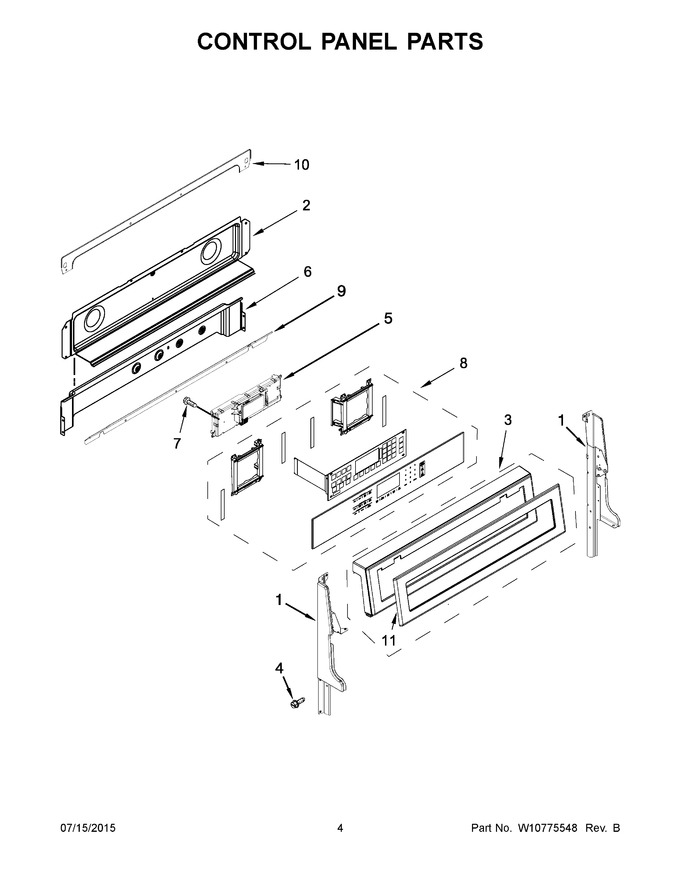

Diagram for KFID500ESS00
