01 - Cover Sheet
02 - Cooktop Parts

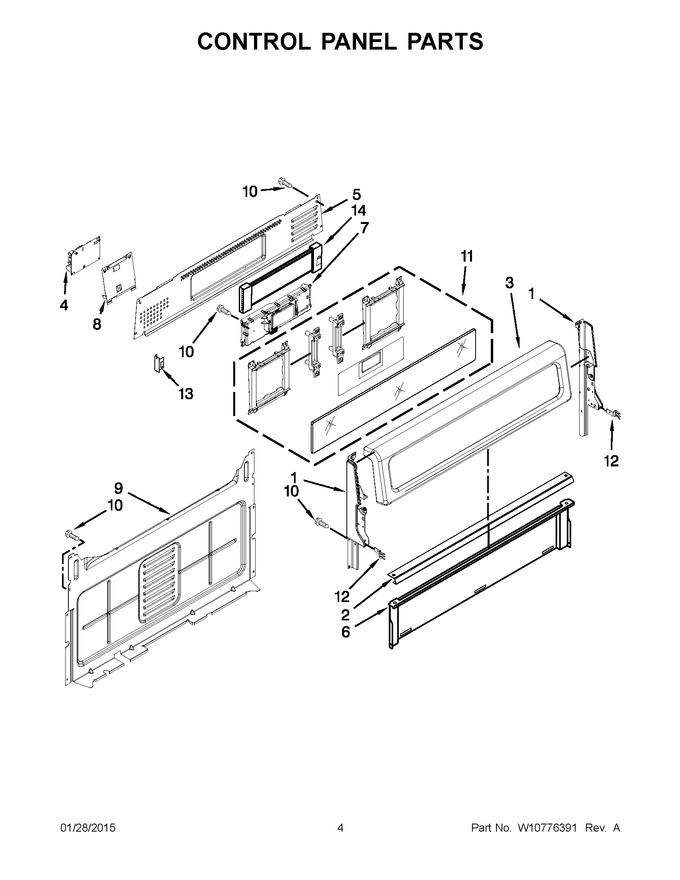

03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11404310 | Endcap (black (left Hand)) (Replaces: W10409002) |
|
$ 69.30 | |||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | W10614437 | Console, Panel (stainless) |
|
$ 137.38 | |||||
| 4 | WPW10511278 | Module, Spark Dsi (Replaces: W10511278) |
|
Immediately | $ 317.01 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 116.01 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 96.02 | |||||
| 7 | WPW10686477 | Control. Mrc2 (Replaces: W10686477) |
|
$ 356.91 | |||||
| 8 | W10516577 | Bracket, Mounting |
|
- | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 11 | W11431918 | Active Overlay Assembly (black) (Replaces: W10324416) |
|
$ 587.34 | |||||
| 12 | 8523412 | Bracket, Rear Cooktop |
|
$ 151.11 | |||||
| 13 | WPW10475149 | Module, Spark (5+0) (Replaces: W10475149) |
|
Immediately | $ 195.52 | ||||
| 14 | WPW10318787 | Connector, Flex (Replaces: W10318787) |
|
$ 107.95 | |||||
| 1A | W10409003 | Endcap (black (right Hand)) |
|
$ 75.68 |
