View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts

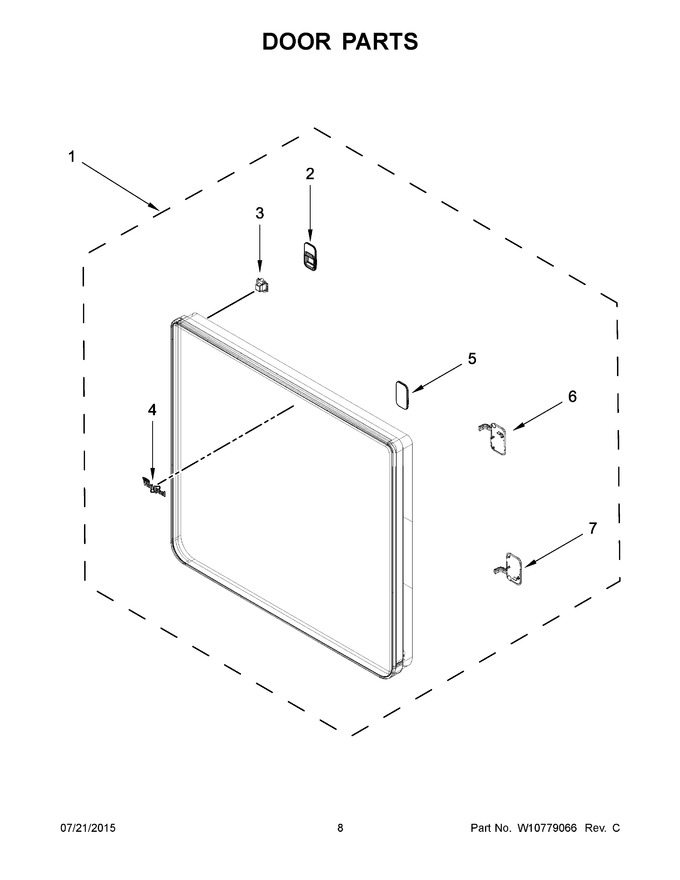

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10916629 | Assembly, Door (chrome Shadow) (Replaces: W10793107) |
|
$ 513.00 | |||||
| 2 | W10669023 | Bezel, Door Catch (chrome Shadow) |
|
$ 21.28 | |||||
| 3 | W11429587 | Assembly, Door Catch (Replaces: W10610880) |
|
Immediately | $ 23.90 | ||||
| 4 | WPW10393264 | Badg (grey) (Replaces: W10393264) |
|
$ 60.97 | |||||
| 5 | W10669024 | Catch, Door Cover (chrome Shadow) |
|
$ 23.09 | |||||
| 6 | W10631412 | Hinge Cover, Top (chrome Shadow) |
|
$ 25.76 | |||||
| 7 | W10631413 | Hinge Cover, Bottom (chrome Shadow) |
|
- |
