01 - Cover Sheet

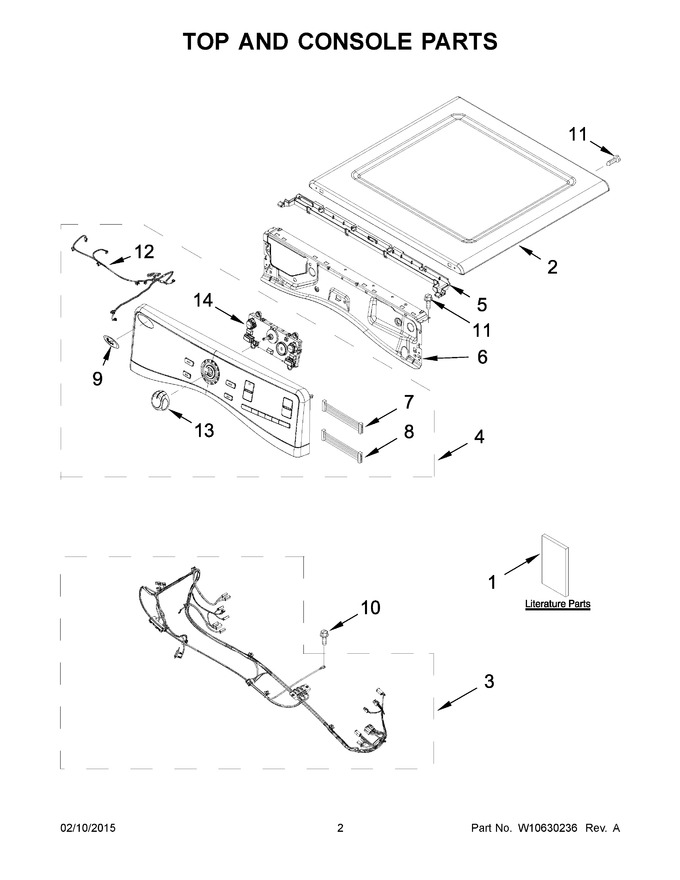

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - 8576353 Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10436347		Use And Care Guide		Appelez-nous	-
2	WPW10316282		Top (silver)   (Replaces: W10316282)				$ 311.57
3	W10441591		Harness, Main				$ 208.15
4	W10388455		Panel, Console (silver)		Appelez-nous	-
5	WPW10653575		Water Channel   (Replaces: W10636058)				$ 81.85
6	W11480682		Bracket, Console   (Replaces: W10208198)				$ 73.09
7	W10267938		Harness, Jumper Ui		Appelez-nous	-
8	W10267937		Harness, Jumper		Appelez-nous	-
9	W10117943		Badge (whirlpool)		Appelez-nous	-
10	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
11	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
12	W10450060		Cable, User Interface		Appelez-nous	-
13	WPW10251394		Assembly, Knob (chrome)   (Replaces: W10251394)				$ 50.35
14	W10388453		User Interface, Center		Appelez-nous	-
1A	W10436726		Tech Sheet		Appelez-nous	-
1B	W10573707		Installation Instructions		Appelez-nous	-
1C	W10300195		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
