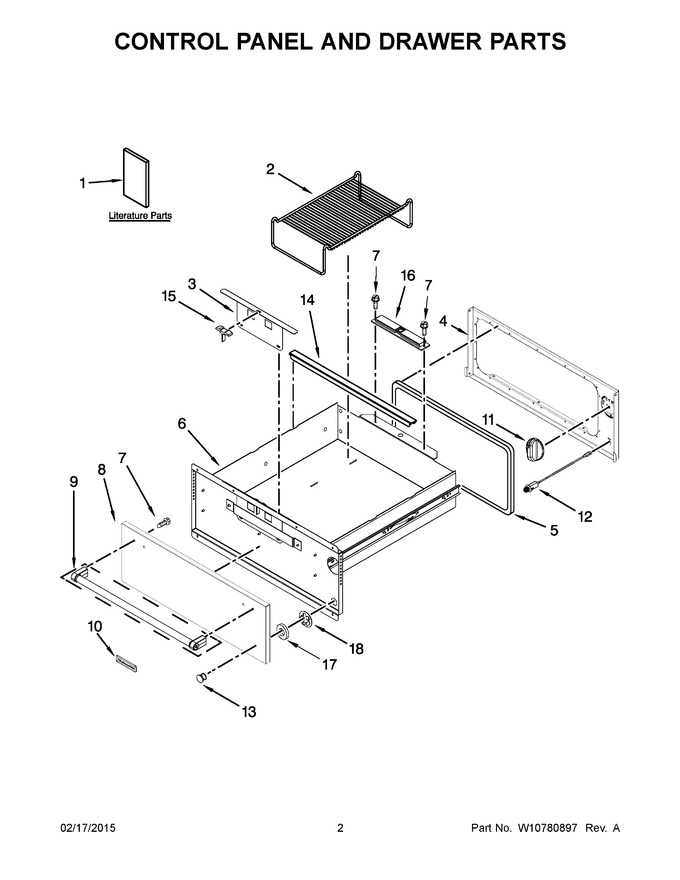

02 - Control Panel And Drawer Parts


03 - Internal Warming Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10713340		Guide, Use & Care		Appelez-nous	-
2	8273277		Rack, Warming Drawer				$ 99.80
3	W10162376		Slide, Vent				$ 96.82
4	W10492179		Panel, Front		Appelez-nous	-
5	W10164998		Gasket, Drawer				$ 36.60
6	WP9763646		Assembly, Drawer   (Replaces: 9763646)			Immediately	$ 462.79
7	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
8	W10685893		Skin, Drawer				$ 346.51
9	W11518518		Assembly, Handle (stainless)   (Replaces: W10541913)				$ 208.58
10	W10909682		Badge (grey)   (Replaces: W10518672)			Immediately	$ 68.58
11	W10854530		Knob, Thermostat   (Replaces: 4455984)				$ 15.71
12	W10489562		Light, Indicator				$ 91.92
13	4456314		Lens, Indicator				$ 91.89
14	W10409138		Rail, Pan			Immediately	$ 104.96
15	9763125		Grip, Vent				$ 72.07
16	W10035910		Magnet				$ 181.67
17	4456861		Spacer, Lens				$ 6.66
18	4456862		Clip, Lens Retainer				$ 6.63
1A	W10064720		Sheet, Tech		Appelez-nous	-
1B	W10713339		Instructions, Installation		Appelez-nous	-
