SELECT A DIAGRAM

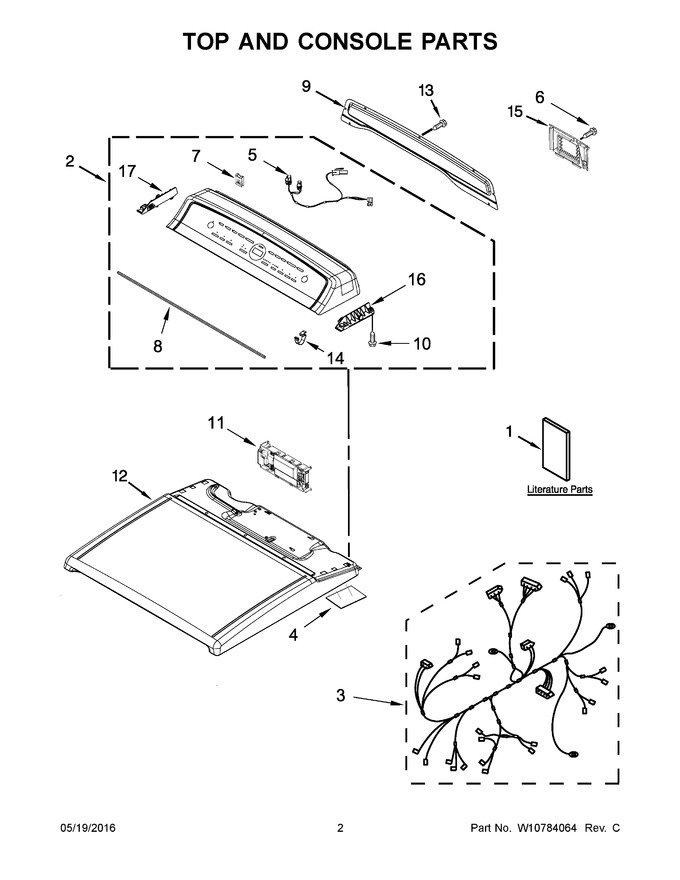

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W11050696		Console Assembly (complete) (white)   (Replaces: W10642097)				$ 154.98
3	W10706040		Wiring Harness, Main		Appelez-nous	-
4	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 27.86
5	W10593673		Harness, User Interface				$ 34.71
6	W10728156		Screw		Appelez-nous	-
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.36
11	W10802464		Control, Electronic   (Replaces: W10739351)				$ 348.34
12	W11227373		Top (white)   (Replaces: W10508981)				$ 230.05
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 93.64
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 138.27
1A	W10680139		Guide, Use And Care		Appelez-nous	-
1B	W10680150		Tech Sheet		Appelez-nous	-
1C	W10720369		Quickstart Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
