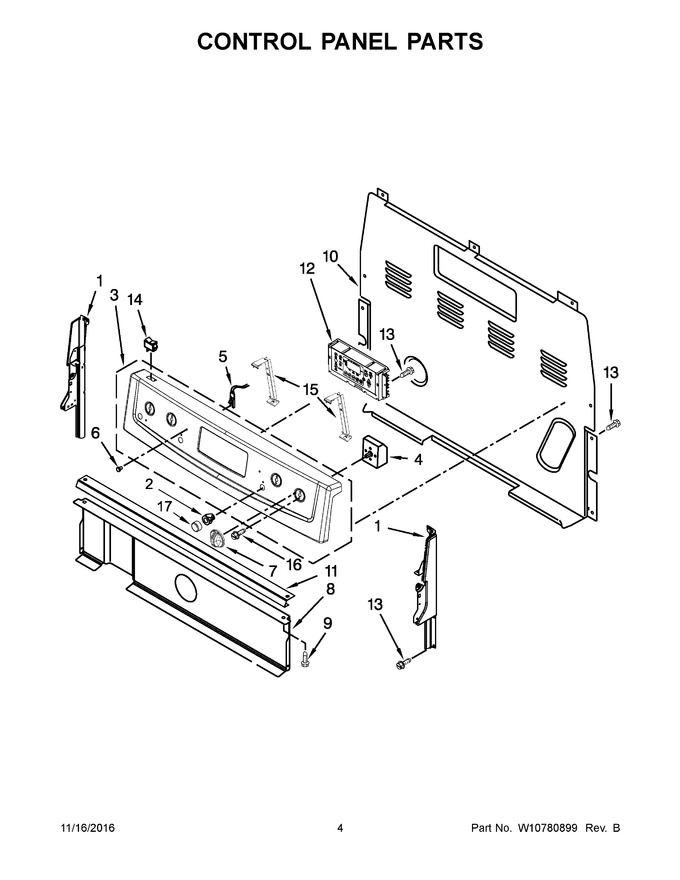

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left)) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 2 | W10217760 | Bezel, Keep Warm (white) |
|
$ 23.32 | |||||
| 3 | W11247340 | Panel, Control (white) (Replaces: W10714877) |
|
- | |||||
| 4 | WPW10434452 | Switch, Infinite (dual) (left Front & Right Front) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W10853029 | Knob, Infinite (white) (Replaces: W10676214) |
|
Immediately | $ 34.44 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 12 | W11122542 | Control, Range (white) (Replaces: W10834000) |
|
$ 474.88 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | 3149360 | Switch, Rocker (white) |
|
$ 89.01 | |||||
| 15 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 76.33 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 17 | 9757492 | Button, Keep Warm (white) |
|
$ 86.41 | |||||
| 12A | W11122540 | Control, Range (black) (Replaces: W10834001) |
|
$ 474.88 | |||||
| 12B | W11122539 | Control, Range (stainless) (Replaces: W10834002) |
|
$ 557.99 | |||||
| 14A | WP4314961 | Switch, Rocker (black) (Replaces: 3148564) |
|
$ 84.56 | |||||
| 17A | 9758491 | Button, Keep Warm (black) |
|
$ 17.77 | |||||
| 17B | W10918209 | Button, Keep Warm (grey) (Replaces: W10315961) |
|
$ 18.19 | |||||
| 1A | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1B | W11219370 | Endcap (white (right)) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1C | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 2A | W10217758 | Bezel, Keep Warm (black) |
|
$ 25.79 | |||||
| 2B | W10315960 | Bezel, Keep Warm (stainless) |
|
$ 63.42 | |||||
| 3A | W11233361 | Panel, Control (black) (Replaces: W10714876) |
|
$ 116.65 | |||||
| 3B | W11234450 | Panel, Control (stainless) (Replaces: W10430819) |
|
- | |||||
| 4A | 5500-287 | Switch, Infinite (left Rear & Right Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 7A | W10836470 | Knob, Infinite (black) (Replaces: W10676213) |
|
Immediately | $ 34.28 |
