Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 345703 Top (white)   (Replaces: 4319377) Special Order $ 235.42

2 280048 Panel, Rear (white)   (Replaces: 4319439) Special Order $ 269.48

3 WP348726 Base Assembly   (Replaces: 4319418) Special Order $ 262.94

4 WP660658 Clip, Motor   (Replaces: 4319313) Special Order $ 7.40

5 279827 Motor, 60 Hz.   (Replaces: 3398046) In-Stock Immediately $ 195.48

7 696541 Base, Motor Special Order $ 88.07

8 307563 Rivet Appelez-nous -
9 WP691366 Idler & Pulley Assembly   (Replaces: 691366) In-Stock Immediately $ 20.22

10 WP3390631 Screw, 10-16 X 3/8   (Replaces: 62863) Special Order $ 7.43

11 WP98997 Clip   (Replaces: 98997) Special Order $ 10.48

12 8066051 Pulley, 60 Hz.   (Replaces: 3396426) Special Order $ 106.90

14 238614 Bumper Special Order $ 76.31

15 3394652 Belt, Drive In-Stock Immediately $ 47.09

16 4319382 Panel, Side (white) Appelez-nous -
17 WP691581 Lever, Door Switch   (Replaces: 295998) In-Stock Immediately $ 7.64

18 W10820036 Switch, Door   (Replaces: 347207) In-Stock Immediately $ 27.45

19 WP98129 Screw, 6-20 X 1-3/8   (Replaces: 98129) Special Order $ 7.36

20 WP8563881 Timer, 60 Hz.   (Replaces: 9830837) Special Order $ 331.19

21 WP3393657 Restrainer, Belt   (Replaces: 3393657) In-Stock Immediately $ 125.17

22 WPW10139210 Screw, 8-18 X 5/16   (Replaces: 3390646) Special Order $ 7.23

23 348171 Bracket, Timer   (Replaces: 4319376) Appelez-nous -
24 280044 Front Panel Assembly (xwhite)   (Replaces: 4319385) Special Order $ 301.64

26 279220 Clip, Felt Pad (2)   (Replaces: 685203) Special Order $ 21.20

27 279264 Seal & Bearing Assembly   (Replaces: 349462) In-Stock Immediately $ 76.91

28 WP345670 Lock, Top (2)   (Replaces: 345670) In-Stock Immediately $ 7.28

30 WP3389441 Catch, Door Assembly   (Replaces: 3389441) In-Stock Immediately $ 6.56

31 9831125 Panel, Control Appelez-nous -
32 9831126 Timer Knob Assembly Appelez-nous -
33 W11808444 Screw, 8-32 X 5/16 (2)   (Replaces: 98139) Appelez-nous -
34 WP694091 Screw (4)   (Replaces: 694091) Special Order $ 6.80

35 9830792 Hinge & Pin Assembly (2) Appelez-nous -
38 279570 Strike, Panel   (Replaces: 696144) In-Stock Immediately $ 8.00

39 W11613302 Seal, Door   (Replaces: 3390734) Special Order $ 50.68

41 4319397 Door, Rear Appelez-nous -
42 4319327 Door, Front (white) Appelez-nous -
43 WP3405184 Handle, Door (white)   (Replaces: 4319329) Special Order $ 71.83

45 279127 (alt.)   (Replaces: 349999) Special Order $ 69.72

45 279127 (alt.)   (Replaces: 688055) Special Order $ 69.72

45 279127 Caster (4)   (Replaces: 660719) Special Order $ 69.72

46 4319443 Cord, Power Appelez-nous -
51 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.62

53 W10854425 Clip (2)   (Replaces: 3394083) In-Stock Immediately $ 14.71

54 345790 Bracket, Power Cord (2) Appelez-nous -
56 WP98234 Clip, Ground (2)   (Replaces: 98234) In-Stock Immediately $ 10.76

60 689038 Switch, Push-to-start Appelez-nous -
62 9831122 Nut, Hex Appelez-nous -
63 345530 Ring, Trim Appelez-nous -
64 688041 Nut, Knurled Appelez-nous -
69 686769 Protector Support Appelez-nous -
72 688193 Lockwasher Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

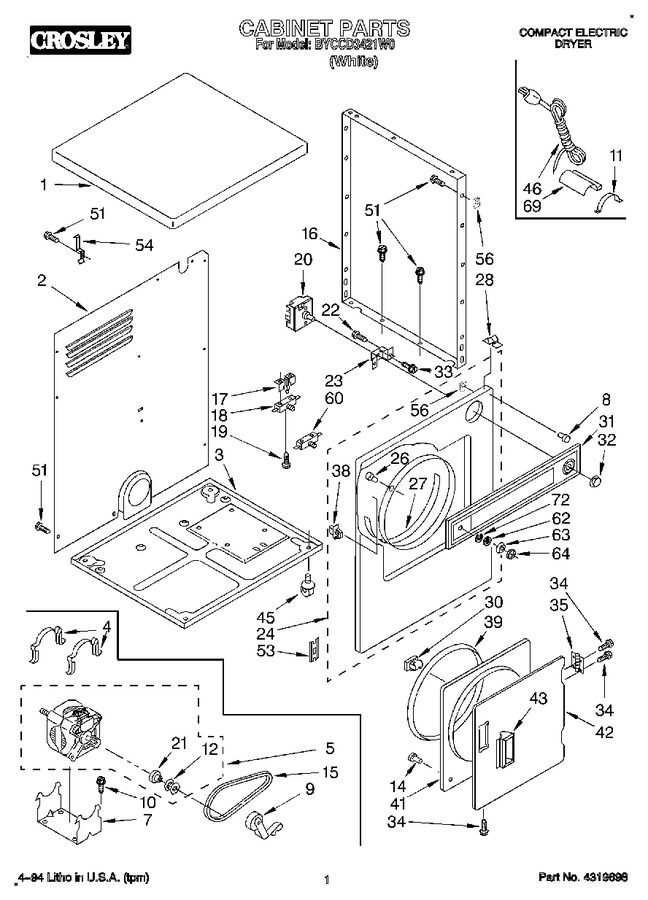

Diagram for BYCCD3421W0
