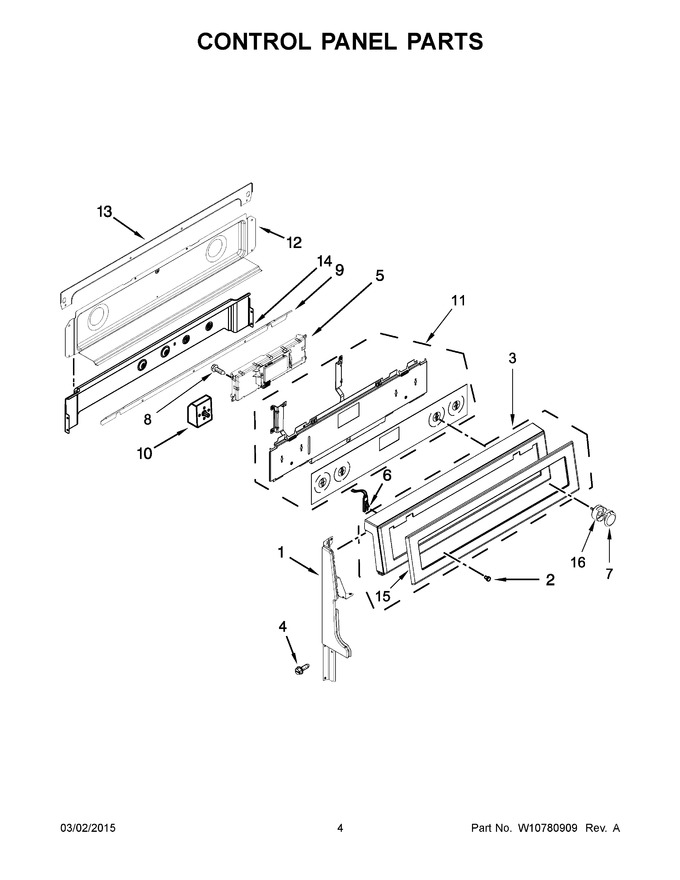

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319109 | Support, Backguard (black (left)) |
|
$ 83.56 | |||||
| 2 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 3 | W10645846 | Console (black) (Replaces: W10645852) |
|
$ 289.13 | |||||
| 4 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 16.74 | |||||
| 5 | WPW10778305 | Control, Electronic (Replaces: W10778305) |
|
Immediately | $ 386.43 | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.02 | ||||
| 7 | W11230929 | Knob (stainless) (Replaces: W10712809) |
|
Immediately | $ 82.73 | ||||
| 8 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| 9 | WPW10299338 | Shield, Wire Cover (Replaces: W10299338) |
|
$ 86.94 | |||||
| 10 | WPW10296657 | Switch, Infinite (lf) (Replaces: W10296657) |
|
Immediately | $ 271.73 | ||||
| 11 | W10692155 | Assembly, User Interface (black) |
|
$ 384.26 | |||||
| 12 | W10296773 | Cover, Backguard |
|
$ 175.07 | |||||
| 13 | WPW10292689 | Cover, Wire Filler (Replaces: W10292689) |
|
$ 85.82 | |||||
| 14 | W10278697 | Shield, Vent |
|
Immediately | $ 165.00 | ||||
| 15 | W10645846 | Skin, Control Panel (black) (Replaces: W10645840) |
|
$ 289.13 | |||||
| 16 | W11368920 | Bezel (Replaces: W10645811) |
|
Immediately | $ 54.50 | ||||
| 10A | WPW10295048 | Switch, Infinite (lr) (Replaces: W10295048) |
|
Immediately | $ 143.96 | ||||
| 10B | WPW10441696 | Switch, Infinite (rf) (Replaces: W10441696) |
|
Immediately | $ 119.45 | ||||
| 10C | WP7403P238-60 | Switch, Infinite (rr) (Replaces: 7403P373-60) |
|
Immediately | $ 67.30 | ||||
| 11A | W10645824 | Assembly, User Interface (white) |
|
- | |||||
| 12A | W10776098 | Cover, Backguard (stainless Models Only) |
|
$ 122.23 | |||||
| 15A | W10645847 | Skin, Control Panel (white) (Replaces: W10645841) |
|
$ 282.30 | |||||
| 15B | W11164063 | Skin, Control Panel (stainless) (Replaces: W10645842) |
|
Immediately | $ 466.76 | ||||
| 1A | W10319111 | Support, Backguard (black (right)) |
|
$ 43.80 | |||||
| 1B | W10319110 | Support, Backguard (white (left)) |
|
$ 86.36 | |||||
| 1C | W10319112 | Support, Backguard (white (right)) |
|
$ 84.41 | |||||
| 3A | W10645847 | Console (white) (Replaces: W10645853) |
|
$ 282.30 | |||||
| 3B | W11164063 | Console (stainless) (Replaces: W10645854) |
|
Immediately | $ 466.76 |
