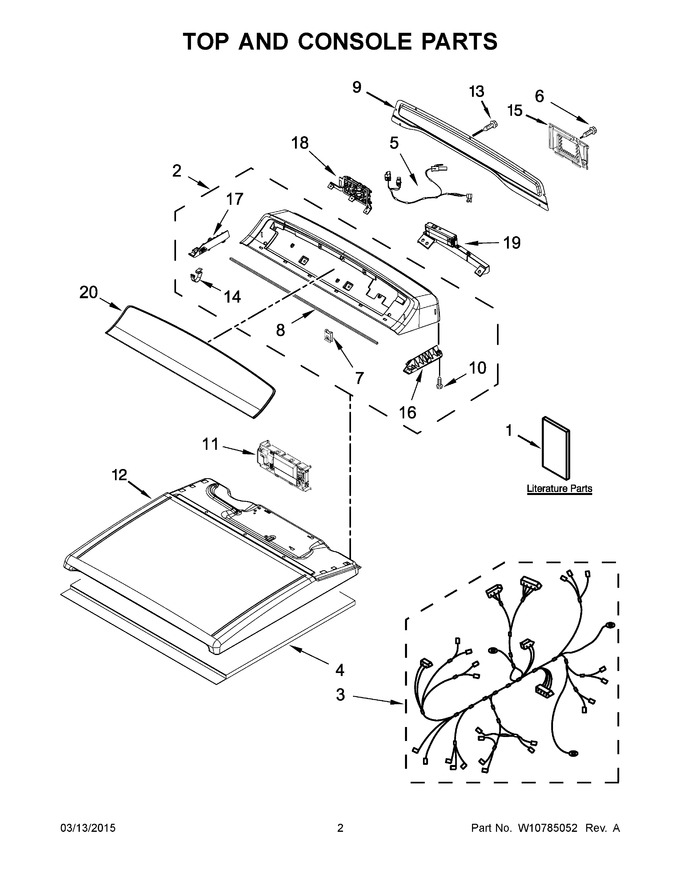

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W11116871		Console (chrome Shadow)   (Replaces: W10682652)				$ 684.03
3	W10722871		Wiring Harness		Appelez-nous	-
4	W10123956		Panel, Dampening		Appelez-nous	-
5	W10721103		Harness, User Interface		Appelez-nous	-
6	W10728156		Screw		Appelez-nous	-
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
11	WPW10786068		Control, Electronic   (Replaces: W10774330)				$ 371.68
12	W11051477		Top (chrome Shadow)   (Replaces: W10681117)				$ 358.85
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
15	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 153.63
18	WPW10721100		Assembly, Power Meter   (Replaces: W10721100)				$ 299.64
19	W10833064		Assembly, Wifi Module   (Replaces: W10722860)		Appelez-nous	-
20	W10885296		Fascia   (Replaces: W10722878)		Appelez-nous	-
1A	W10722883		Owners Manual		Appelez-nous	-
1B	W10722885		Tech Sheet		Appelez-nous	-
1C	W10766902		Quickstart Guide		Appelez-nous	-
