Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11205078 Accumulator Assembly   (Replaces: W10591545) In-Stock Immediately $ 113.60

2 W11243394 Motor, Isolator   (Replaces: W10195086) Special Order $ 13.11

3 W10736968 Cover, Accumulator   (Replaces: W10571942) Special Order $ 55.20

4 WPW10482462 Sump With Seal (also Order Items 13 & 18)   (Replaces: W10482462) In-Stock Immediately $ 246.65

5 W11747583 Cover, Outlet   (Replaces: W10463892) Special Order $ 26.57

6 W10591547 Protector, Inlet Special Order $ 34.38

7 W11661859 Adapter, Drain   (Replaces: W10591540) In-Stock Immediately $ 20.86

8 W11246682 Chopper Assembly   (Replaces: W10591562) In-Stock Immediately $ 77.58

9 W10815709 Motor Assembly (also Order Item 13)   (Replaces: W10591569) In-Stock Immediately $ 318.34

10 WPW10372113 Tab, Sump   (Replaces: W10372113) In-Stock Immediately $ 26.42

11 WPW10348407 Screw   (Replaces: W10348407) Special Order $ 7.25

12 WPW10591570 Sump & Motor Assembly   (Replaces: W10591570) In-Stock Immediately $ 397.51

13 WPW10538166 Grommet   (Replaces: W10538166) In-Stock Immediately $ 39.93

14 8533949 Nut Special Order $ 78.10

15 WPW10348269 Pump, Drain   (Replaces: W10348269) In-Stock Immediately $ 87.71

16 W10591561 Enclosure, Motor Special Order $ 28.71

17 8269144A Hose, Drain   (Replaces: 8269144) In-Stock Immediately $ 26.14

18 W10445975 Hose Assembly (includes 2 Clamps) In-Stock Immediately $ 76.84

19 W10685075 Impeller Assembly   (Replaces: W10591558) In-Stock Immediately $ 45.54

20 WPW10705575 Indicator, Optical Wash   (Replaces: W10705575) In-Stock Immediately $ 39.43

21 W11662065 Capacitor   (Replaces: W10591575) In-Stock Immediately $ 157.35

22 WP285655 Clamp, Hose   (Replaces: 370445) In-Stock Immediately $ 7.93

23 W10618403 Housing, Pump(also Order Items 13 & 18) Special Order $ 82.27

24 W10467002 Screw Appelez-nous -
25 W10789434 Clamp, Hose   (Replaces: W10169167) In-Stock Immediately $ 12.96

26 W10803178 Sprayarm, Lower   (Replaces: W10605800) In-Stock Immediately $ 262.77


    View Diagram in Separate Window     Print Icon   Print Part List

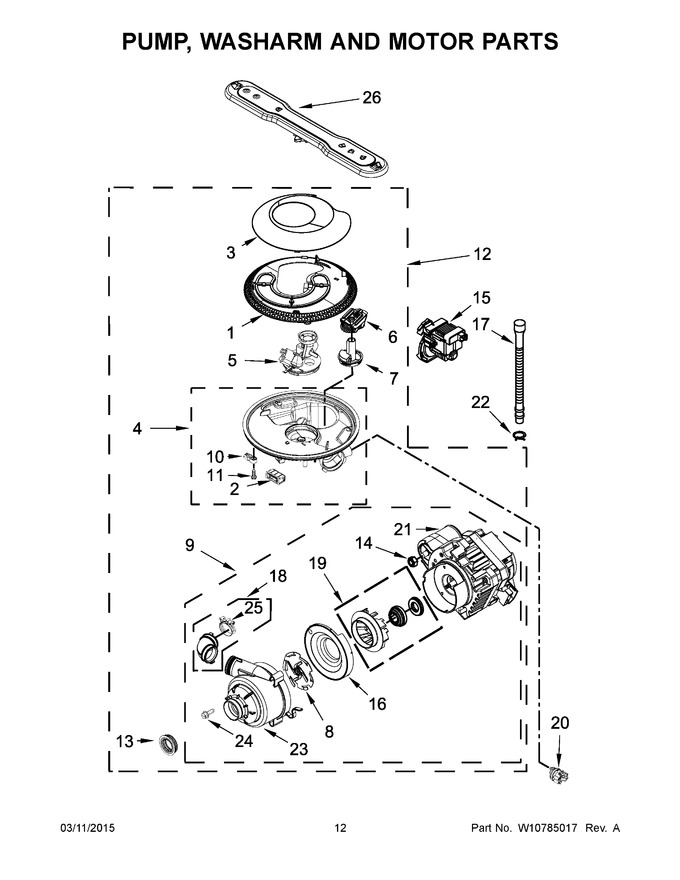

Diagram for MDB5969SDM1
