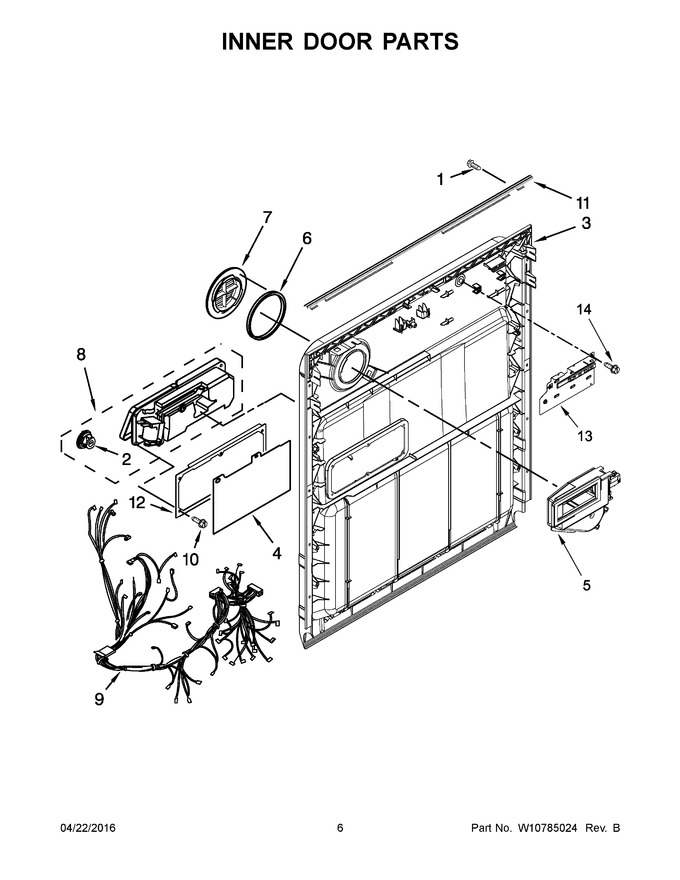

03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348413		Screw   (Replaces: W10348413)			Immediately	$ 7.57
2	WPW10524922		Cap, Rinse Aid   (Replaces: W10524922)				$ 44.62
3	W11676896		Inner Door (also Order Item 6)   (Replaces: W10214176)			Immediately	$ 314.29
4	WPW10482094		Cover, Dispenser   (Replaces: W10482094)			Immediately	$ 29.12
5	WPW10428211		Vent Assembly (includes Item 6)   (Replaces: W10428211)				$ 160.14
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 57.15
7	W11676895		Deflector, Vent (also Order Item 6)   (Replaces: W10671926)				$ 20.97
8	W11820247		Dispenser, Assembly   (Replaces: W10428217)			Immediately	$ 114.90
9	W10641985		Wiring Harness				$ 116.24
10	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 7.22
11	W10837566		Seal, Console/door   (Replaces: W10274923)			Immediately	$ 78.16
12	WPW10462232		Bracket, Dispenser   (Replaces: W10462232)				$ 34.01
13	W10183431		Bracket, Control		Appelez-nous	-
14	W11631670		Screw   (Replaces: 8281217)				$ 13.25
