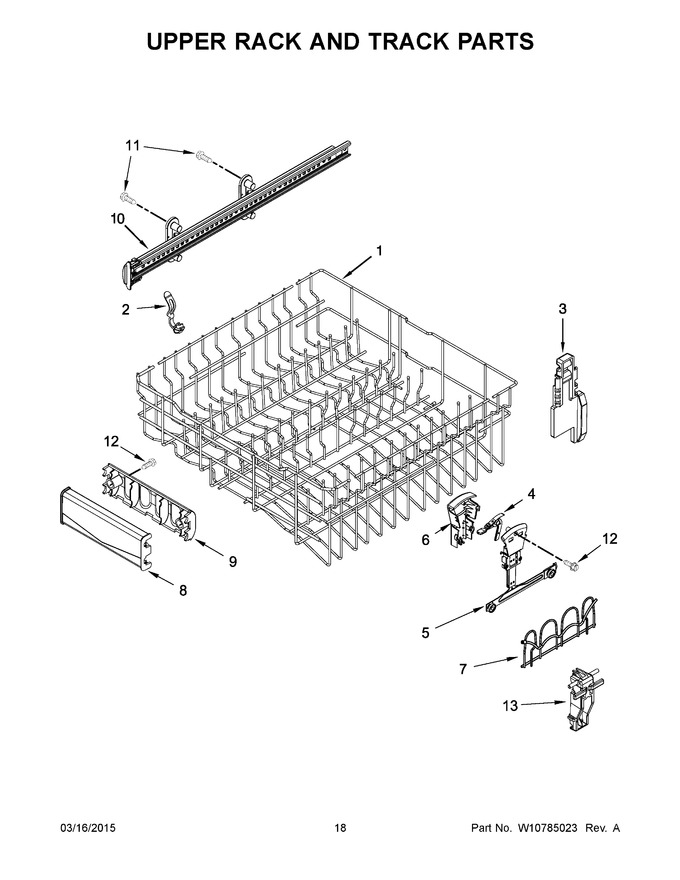

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11501779 | Dishrack, Upper (Replaces: W10599523) |
|
Immediately | $ 148.83 | ||||
| 2 | WPW10630203 | Clip, Lite Item (Replaces: W10630203) |
|
$ 18.36 | |||||
| 3 | WPW10609586 | Stabilizer, Rack (Replaces: W10609586) |
|
Immediately | $ 29.22 | ||||
| 4 | WPW10627763 | Lever, Rack Adjuster (Replaces: W10627763) |
|
Immediately | $ 31.72 | ||||
| 5 | WPW10609579 | Adjuster, Rack (left Hand) (Replaces: W10609579) |
|
Immediately | $ 112.16 | ||||
| 6 | WPW10251047 | Cover, Rack Adjuster (Replaces: W10251047) |
|
Immediately | $ 30.68 | ||||
| 7 | W10663575 | Cupshelf |
|
$ 140.43 | |||||
| 8 | W10635042 | Handle, Dishrack (front) |
|
$ 86.63 | |||||
| 9 | W10562068 | Handle, Dishrack (rear) |
|
$ 25.20 | |||||
| 10 | W10567728 | Track Assembly |
|
$ 59.85 | |||||
| 11 | WPW10309090 | Screw (Replaces: W10309090) |
|
Immediately | $ 69.17 | ||||
| 12 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 4.56 | ||||
| 13 | WPW10663572 | Mount, Cupshelf (Replaces: W10663572) |
|
Immediately | $ 32.38 | ||||
| 5A | WPW10609578 | Adjuster, Rack (right Hand) (Replaces: W10609578) |
|
Immediately | $ 110.75 |
