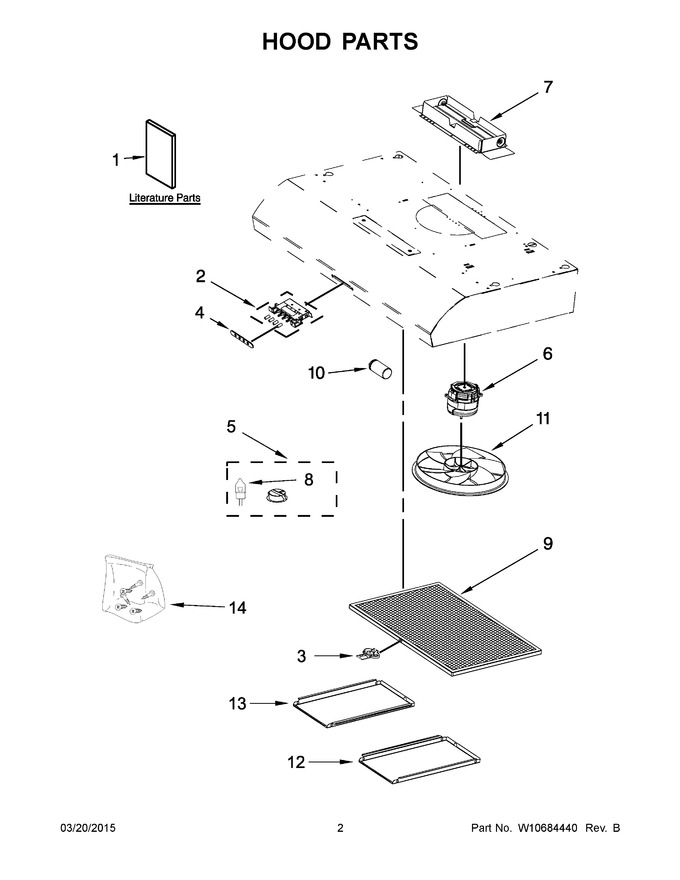

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10646405		Use And Care Guide		Appelez-nous	-
2	WPW10419516		Control, Buttons   (Replaces: W10419516)				$ 269.50
3	W10416841		Latch, Filter				$ 11.96
4	W10416838		Cover, Buttons				$ 27.75
5	WPW10638164		Assembly, Light   (Replaces: W10638164)			Immediately	$ 242.24
6	W10416839		Motor				$ 438.05
7	WPW10291572		Damper, Hood   (Replaces: W10291572)				$ 176.02
8	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 24.94
9	W11177751		Filter, Grease   (Replaces: W10419114)			Immediately	$ 47.73
10	W10416842		Capacitor				$ 84.93
11	W10416840		Fan				$ 90.15
12	W10419522		Side Panel, Right (white 30" Model)				$ 154.15
13	W10419523		Side Panel, Left (white 30" Model)				$ 154.15
14	W10684097		Hardware, Installation				$ 81.62
12A	W10419517		Side Panel, Right (black 30" Model)		Appelez-nous	-
12B	W10416843		Side Panel, Right (stainless 30" Model)				$ 140.76
12C	W10419535		Side Panel, Right (stainless 36" Model)				$ 111.54
13A	W10419521		Side Panel, Left (black 30" Model)		Appelez-nous	-
13B	W10416844		Side Panel, Left (stainless 30" Model)				$ 145.69
13C	W10419532		Side Panel, Left (stainless 36" Model)				$ 151.95
NI	31462A		Accessories, Cleaner, Stainless Steel		Appelez-nous	-
NI	W10613691		Accessories, Power Cord Kit   (Replaces: W10355452)				$ 52.92
NI	W10386873		Accessories, Charcoal Filter Kit			Immediately	$ 38.13
NI	W10355451		Accessories, 7" Round Damper				$ 42.50
NI	W10388168		Accessories, 7" Round Mounting Plate				$ 37.92
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
