SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)

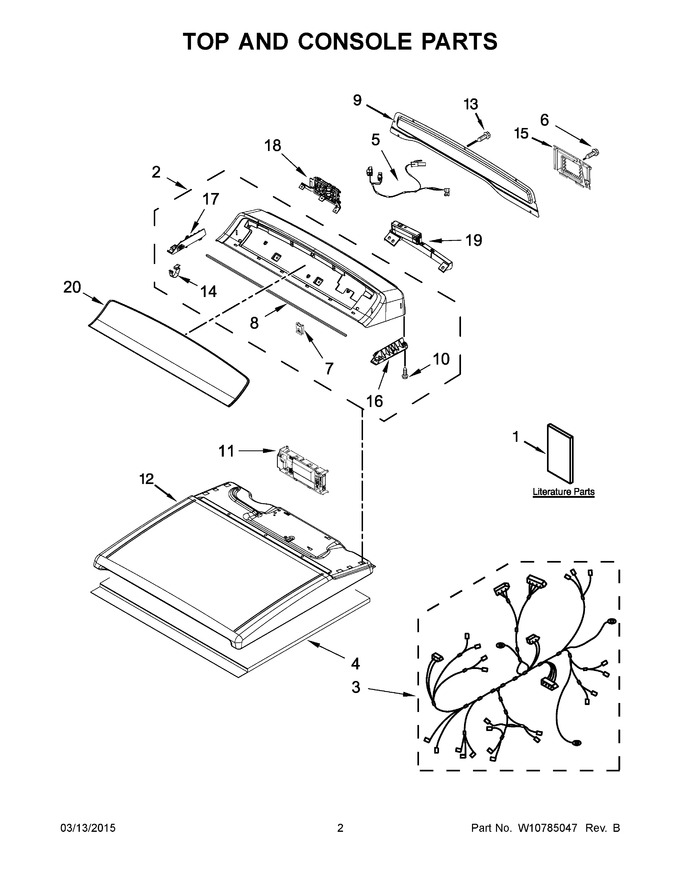

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W11116871		Console (chrome Shadow)   (Replaces: W10682652)				$ 615.63
3	W10721104		Wiring Harness, Main		Appelez-nous	-
4	W10123956		Panel, Dampening		Appelez-nous	-
5	W10721103		Harness, User Interface		Appelez-nous	-
6	W10728156		Screw		Appelez-nous	-
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.36
11	WPW10786067		Control, Electronic   (Replaces: W10774329)				$ 335.22
12	W11051477		Top (chrome Shadow)   (Replaces: W10681117)				$ 322.97
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 93.64
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 138.27
18	WPW10721090		Assembly, Power Meter   (Replaces: W10721090)				$ 258.82
19	W10833064		Assembly, Wifi Module   (Replaces: W10722860)		Appelez-nous	-
20	W10885296		Fascia   (Replaces: W10722878)		Appelez-nous	-
1A	W10722883		Owners Manual		Appelez-nous	-
1B	W10722885		Tech Sheet		Appelez-nous	-
1C	W10766902		Quickstart Guide		Appelez-nous	-
