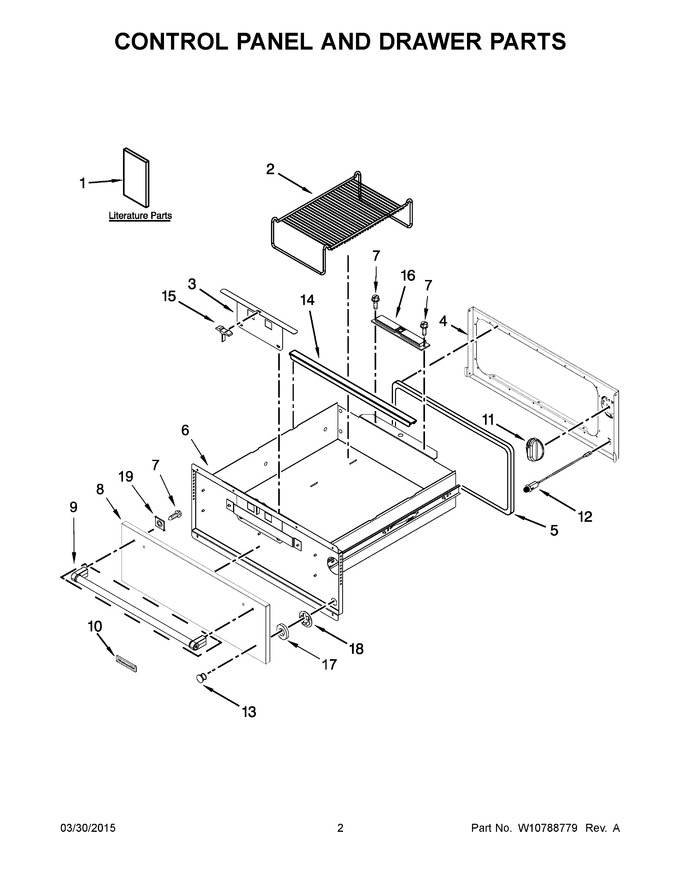

02 - Control Panel And Drawer Parts


03 - Internal Warming Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10713340		Guide, Use & Care		Appelez-nous	-
2	8273277		Rack, Warming Drawer				$ 99.80
3	W10162376		Slide, Vent				$ 96.82
4	W10491701		Panel, Front		Appelez-nous	-
5	W10164997		Gasket, Drawer		Appelez-nous	-
6	WP9763645		Assembly, Drawer   (Replaces: 9763645)				$ 422.23
7	W10920281		Screw   (Replaces: W10656499)			Immediately	$ 8.06
8	W10685895		Skin, Drawer				$ 192.74
9	W11525064		Assembly, Handle (stainless)   (Replaces: W10640874)				$ 215.08
10	W10909682		Badge (grey)   (Replaces: W10518672)			Immediately	$ 68.58
11	W10854530		Knob, Thermostat   (Replaces: 4455984)				$ 15.71
12	W10489562		Light, Indicator				$ 91.92
13	4456314		Lens, Indicator				$ 91.89
14	W10409137		Rail, Pan				$ 80.55
15	9763125		Grip, Vent				$ 72.07
16	W10035910		Magnet				$ 181.67
17	4456861		Spacer, Lens				$ 6.66
18	4456862		Clip, Lens Retainer				$ 6.63
19	W11190816		Spacer, Handle   (Replaces: 3823F017-45)				$ 15.69
1A	W10064720		Sheet, Tech		Appelez-nous	-
1B	W10713339		Instructions, Installation		Appelez-nous	-
