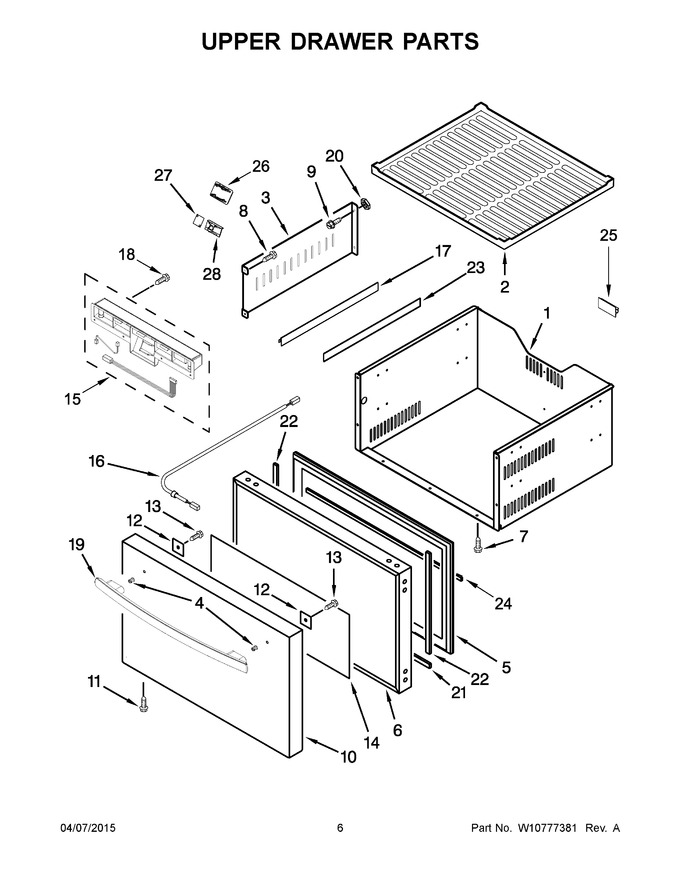

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10622003		Drawer Box Assembly, Upper		Appelez-nous	-
2	W10622004		Mat, Upper Drawer				$ 325.70
3	W10270486		Drawer Partition				$ 269.40
4	WP8564951		Stud, Handle Mounting   (Replaces: W10319166)			Immediately	$ 17.40
5	WPW10622006		Gasket   (Replaces: W10622006)			Immediately	$ 164.78
6	W10772896		Top Foamed Door Assembly		Appelez-nous	-
7	W10319183		Screw		Appelez-nous	-
8	W10204809		Screw		Appelez-nous	-
9	W10204810		Screw		Appelez-nous	-
10	W10622009		Wrap, Stainless Steel				$ 191.43
11	W10319185		Screw		Appelez-nous	-
12	W10299088		Plate, Door Handle		Appelez-nous	-
13	W10859467		Screw, Handle   (Replaces: W10204866)				$ 72.21
14	W10204867		Wrap Spacer		Appelez-nous	-
15	WPW10796447		Control Panel Assembly   (Replaces: W10796447)				$ 526.55
16	W10789534		Harness, Display To Indicator			Immediately	$ 135.57
17	W10622013		Support, Lead Wire				$ 25.83
18	W10204808		Screw		Appelez-nous	-
19	W10622019		Handle			Immediately	$ 324.81
20	W10204920		Nut		Appelez-nous	-
21	W10204889		Door Gasket, Long		Appelez-nous	-
22	W10204897		Door Gasket, Short		Appelez-nous	-
23	W10205081		Wire Support Tape				$ 56.55
24	W10287957		Seal, Cold Air		Appelez-nous	-
25	W10772901		Support, Wire				$ 17.60
26	W10204929		Lamp Cover				$ 80.26
27	W10204930		Led Lamp				$ 312.84
28	W10204931		Lamp Holder				$ 71.69
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10788702		Overlay Installation Kit				$ 96.93

    View Diagram in Separate Window       Print Part List
