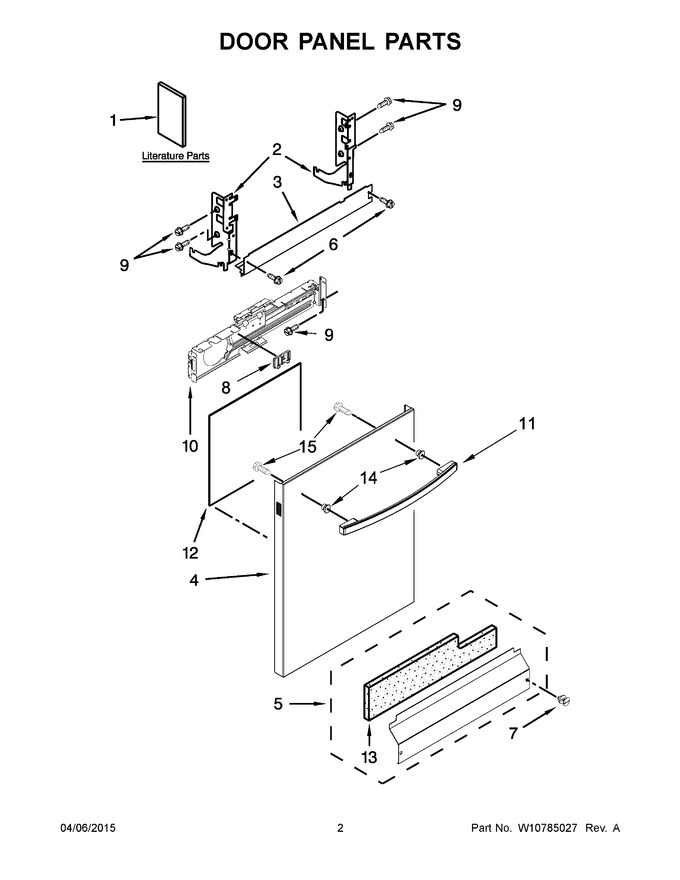

02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741197		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10321448)			Immediately	$ 32.88
4	W10494241		Panel, Front (include Items 14 & 15) (stainless)				$ 176.49
5	W10827608		Access Panel (black)   (Replaces: W10369038)				$ 180.76
6	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
7	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
8	W10463662		Spacer, Control Bracket Panel				$ 49.41
9	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
10	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 88.32
11	W11032768		Handle Assembly (stainless)   (Replaces: W10671792)				$ 127.08
12	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
13	W10831329		Insulation, Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
14	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 8.87
15	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
1A	W10671814		Energy Guide		Appelez-nous	-
1B	W10671842		Use & Care Guide		Appelez-nous	-
1C	W10580766		Tech Sheet, English		Appelez-nous	-
1D	W10580767		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
