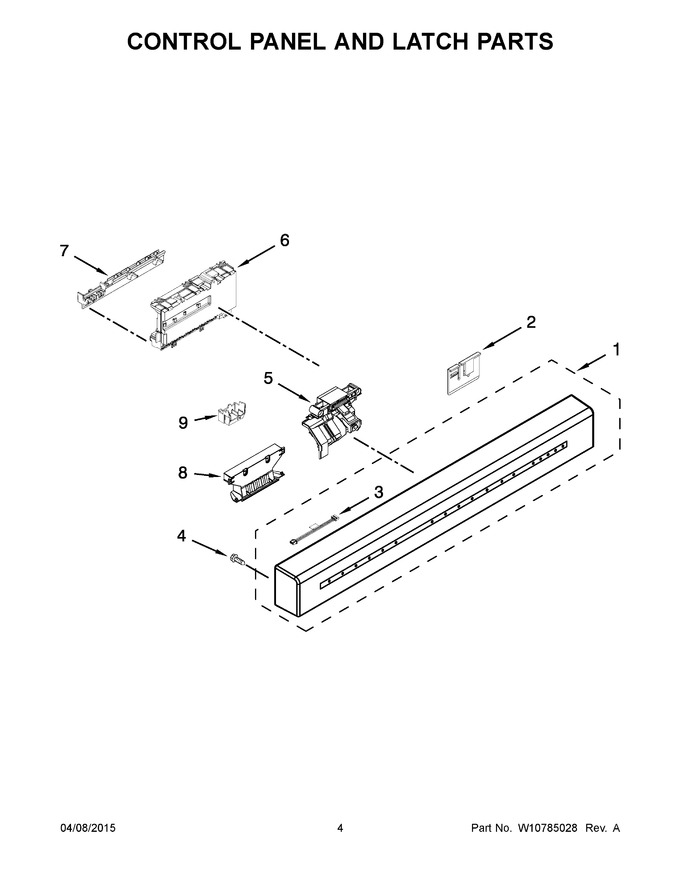

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10740181 | Console Assembly (includes Insert) (black) |
|
$ 175.44 | |||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | W10528492 | Jumper, 4 Wire |
|
$ 30.11 | |||||
| 4 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 7.55 | ||||
| 5 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10653840) |
|
Immediately | $ 34.18 | ||||
| 6 | W10854229 | Control, Electronic (Replaces: W10790702) |
|
$ 261.22 | |||||
| 7 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 8 | W10537379 | Handle (black) |
|
$ 27.52 | |||||
| 9 | W10783730 | Box, Connector (Replaces: W10756253) |
|
$ 31.41 | |||||
| 1A | W10740182 | Console Assembly (includes Insert) (white) |
|
$ 340.14 | |||||
| 1B | W10740180 | Console Assembly (includes Insert) (stainless) |
|
$ 244.13 |
