SELECT A DIAGRAM

01 - Cover Sheet

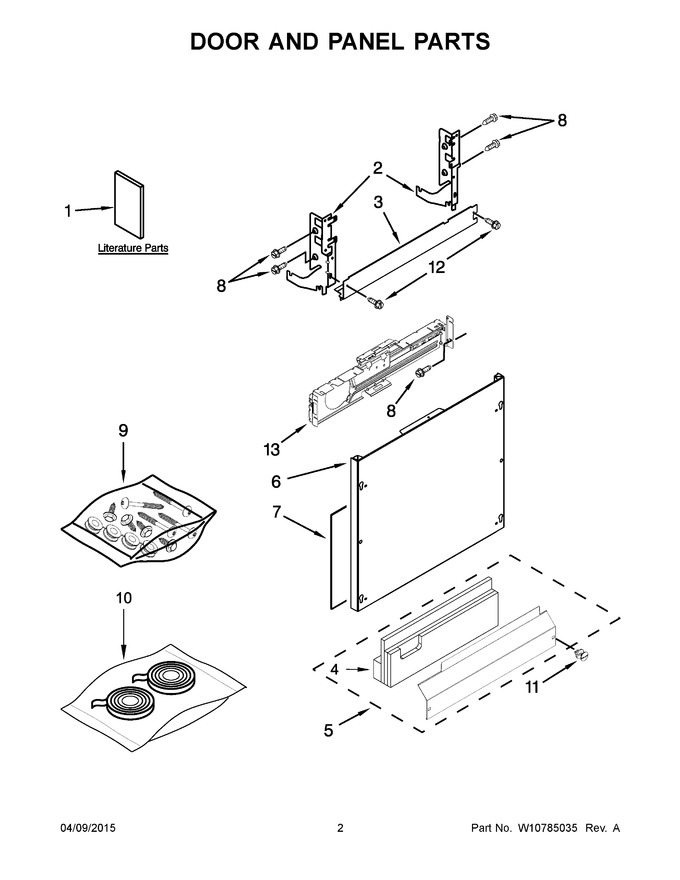

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Third Level Rack And Track Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741197		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 128.15
3	W10850371		Barrier, Vapor   (Replaces: W10321448)			Immediately	$ 29.59
4	W10831329		Insulation, Four Layer   (Replaces: W10518815)			Immediately	$ 38.97
5	WPW10526114		Access Panel (black)   (Replaces: W10526114)			Immediately	$ 163.77
6	W11113792		Panel Ready (front)   (Replaces: W10292632)			Immediately	$ 336.08
7	W10234565		Insulation, Front Panel				$ 62.61
8	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
9	WPW10637074		Hardware, Custom Panel   (Replaces: W10195008)			Immediately	$ 67.55
10	WPW10366978		Seal, Panel Ready   (Replaces: W10366978)			Immediately	$ 26.82
11	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 27.35
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
13	W11116870		Bracket, Control   (Replaces: W10641745)				$ 80.96
1A	W10746816		Energy Guide		Appelez-nous	-
1B	W10751710		Use & Care Guide		Appelez-nous	-
1C	W10750905		Tech Sheet, English		Appelez-nous	-
1D	W10750906		Tech Sheet, French		Appelez-nous	-
1E	W10195005		Template, 6" Custom Panel		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 128.02
