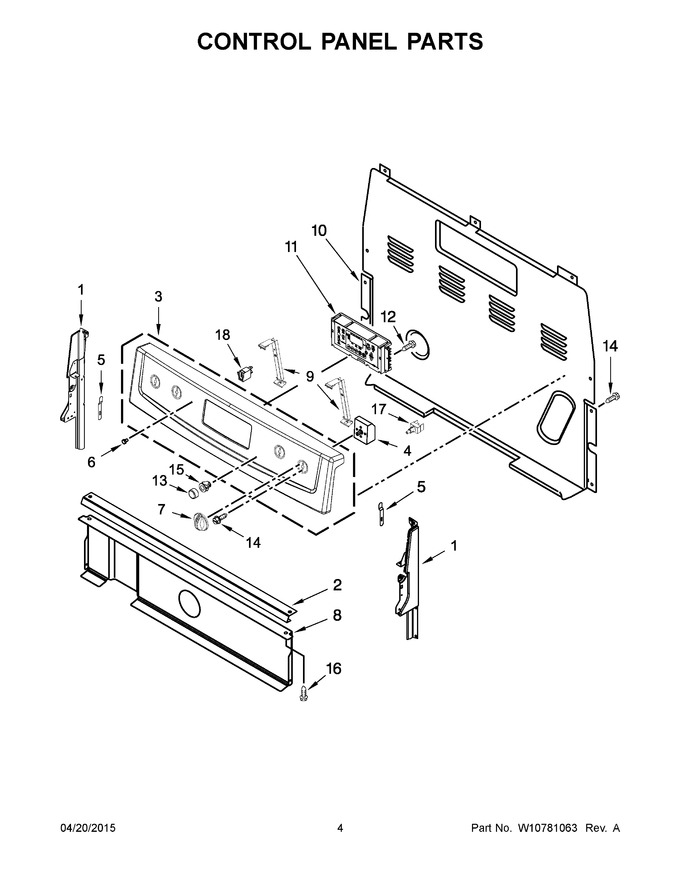

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 38.21
2	W10525121		Bracket, Console Mounting				$ 88.97
3	W10772083		Panel, Control (white)		Appelez-nous	-
4	WP3149400		Switch, Infinite (right Front)   (Replaces: 3148954)			Immediately	$ 81.46
5	3196200		Clip, Spring				$ 9.41
6	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
7	WP9761962		Knob, Infinite (white)   (Replaces: 9761962)			Immediately	$ 18.59
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 76.33
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	WPW10734600		Control, Range (lcc 95) (white)   (Replaces: W10734600)			Immediately	$ 517.61
12	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
13	9757492		Button, Keep Warm (white)				$ 86.41
14	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
15	W10217760		Bezel, Keep Warm (white)				$ 23.32
16	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
17	WP8272820		Switch, Warm Zone   (Replaces: 8272820)				$ 161.02
18	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 91.76
1A	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 54.75
4A	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 49.03
4B	WPW10434452		Switch, Infinite (left Front)   (Replaces: W10434452)			Immediately	$ 126.76
