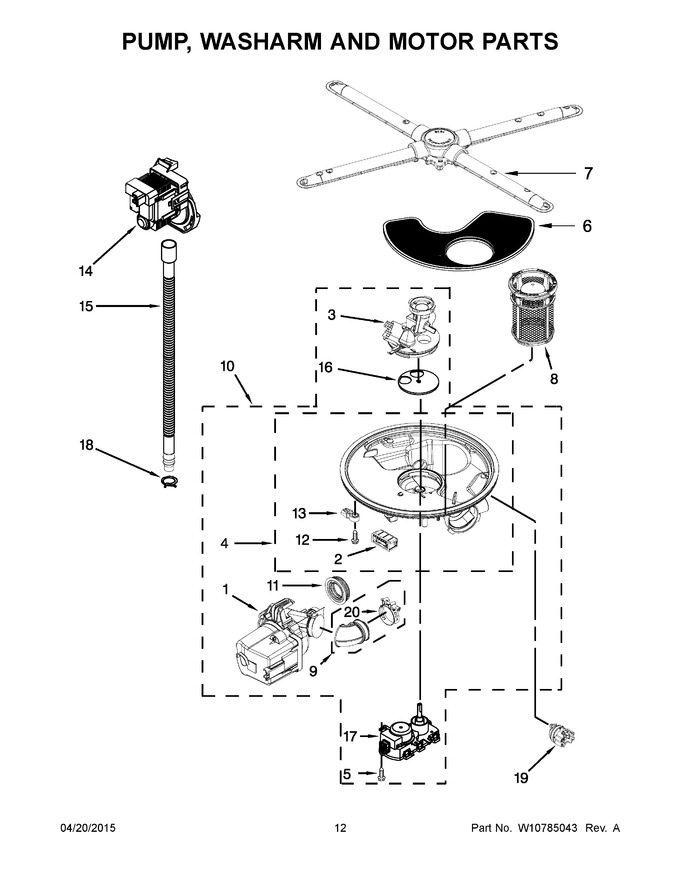

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10894668 | Motor (also Order Items 9 & 11) (Replaces: W10314568) |
|
Immediately | $ 340.46 | ||||
| 2 | W11243394 | Motor, Isolator (Replaces: W10195086) |
|
$ 13.11 | |||||
| 3 | WPW10455271 | Cover, Outlet (Replaces: W10455271) |
|
Immediately | $ 22.38 | ||||
| 4 | W10195067 | Sump With Seal (also Order Items 9 & 11) |
|
- | |||||
| 5 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 4.56 | ||||
| 6 | WPW10463906 | Screen (Replaces: W10463906) |
|
Immediately | $ 33.00 | ||||
| 7 | W11101428 | Sprayarm Assembly, Lower (Replaces: W10665718) |
|
Immediately | $ 111.47 | ||||
| 8 | W10872845 | Filter Cup Assembly (Replaces: W10693534) |
|
Immediately | $ 49.57 | ||||
| 9 | W10445975 | Hose Assembly (includes 2 Clamps) |
|
Immediately | $ 76.84 | ||||
| 10 | W11319349 | Motor & Sump Assembly (Replaces: W10456966) |
|
$ 357.62 | |||||
| 11 | WPW10538166 | Grommet (Replaces: W10538166) |
|
Immediately | $ 39.93 | ||||
| 12 | WPW10348407 | Screw (Replaces: W10348407) |
|
$ 7.25 | |||||
| 13 | WPW10372113 | Tab, Sump (Replaces: W10372113) |
|
Immediately | $ 26.42 | ||||
| 14 | WPW10531320 | Motor, Drain (Replaces: W10531320) |
|
Immediately | $ 87.99 | ||||
| 15 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 26.14 | ||||
| 16 | WPW10476221 | Disc, Diverter (Replaces: W10476221) |
|
Immediately | $ 24.67 | ||||
| 17 | W10537869 | Motor, Diverter (Replaces: W10476222) |
|
Immediately | $ 102.92 | ||||
| 18 | WP8269146 | Clamp, Hose (Replaces: 8269146) |
|
$ 7.73 | |||||
| 19 | WPW10705575 | Indicator, Optical Wash (Replaces: W10705575) |
|
Immediately | $ 39.43 | ||||
| 20 | W10789434 | Clamp, Hose (Replaces: W10763498) |
|
Immediately | $ 12.96 |
