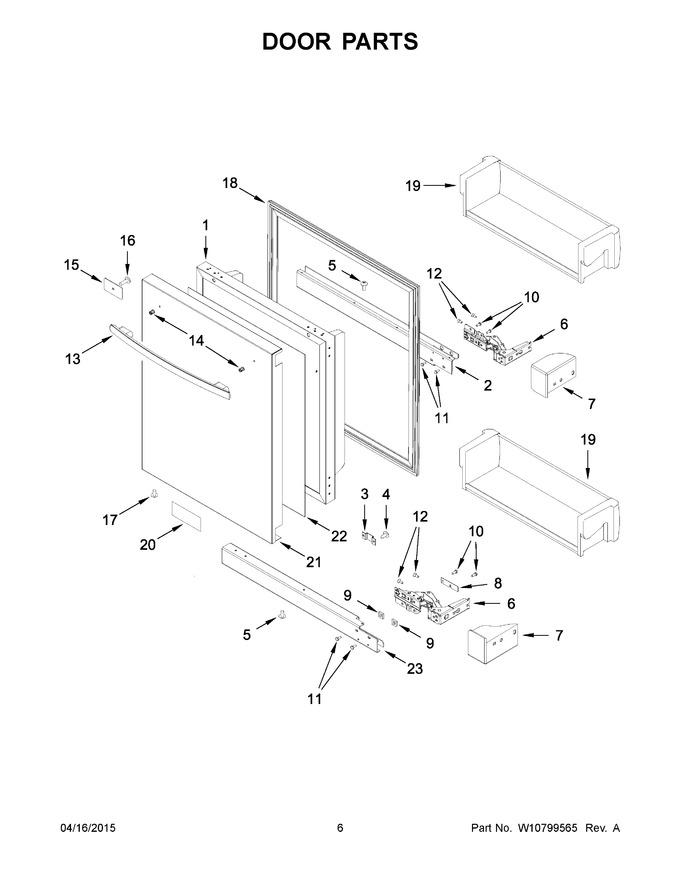

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10622805		Foamed Door Assembly (right Hinge)		Appelez-nous	-
2	W10622806		Latch Hinge Fix Plate Top (right Hinge)				$ 180.79
3	W10622808		Switch Plate				$ 24.54
4	W10319185		Screw		Appelez-nous	-
5	W10319187		Screw				$ 66.16
6	W10622809		Assembly, Hinge Top Right & Bottom Left				$ 256.77
7	W10622811		Cover, Hinge Top Right & Bottom Left				$ 113.43
8	W10780350		Spacer, Bottom Hinge		Appelez-nous	-
9	W10780347		Spacer, Mounting Hinge		Appelez-nous	-
10	W10319189		Screw				$ 64.03
11	W10622817		Screw				$ 23.10
12	W10780349		Screw				$ 46.80
13	W10622019		Handle			Immediately	$ 324.81
14	WP8564951		Stud, Handle Mounting   (Replaces: W10319166)			Immediately	$ 17.40
15	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 15.65
16	W10859467		Screw, Handle   (Replaces: W10204866)				$ 72.21
17	W10319183		Screw		Appelez-nous	-
18	WPW10624183		Gasket, Door   (Replaces: W10624183)				$ 244.37
19	W10175958		Door Bin		Appelez-nous	-
20	WPW10214168		Name Plate   (Replaces: W10292471)				$ 77.36
21	W10622813		Stainless Wrap (right Hand)				$ 297.44
22	W10800040		Spacer, Stainless Wrap		Appelez-nous	-
23	W10622807		Latch Hinge Fix Plate Bottom (right Hinge)				$ 180.79
1A	W10623024		Foamed Door Assembly (left Hinge)		Appelez-nous	-
21A	W10623023		Stainless Wrap (left Hand)				$ 321.72
23A	W10623029		Latch Hinge Fix Plate Bottom (left Hinge)		Appelez-nous	-
2A	W10623027		Latch Hinge Fix Plate Top (left Hinge)				$ 180.61
6A	W10622810		Assembly, Hinge Top Left & Bottom Right				$ 258.35
7A	W10622812		Cover, Hinge Top Left & Bottom Right				$ 113.43
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10800048		Overlay Installation Parts		Appelez-nous	-
