SELECT A DIAGRAM

01 - Cover Sheet

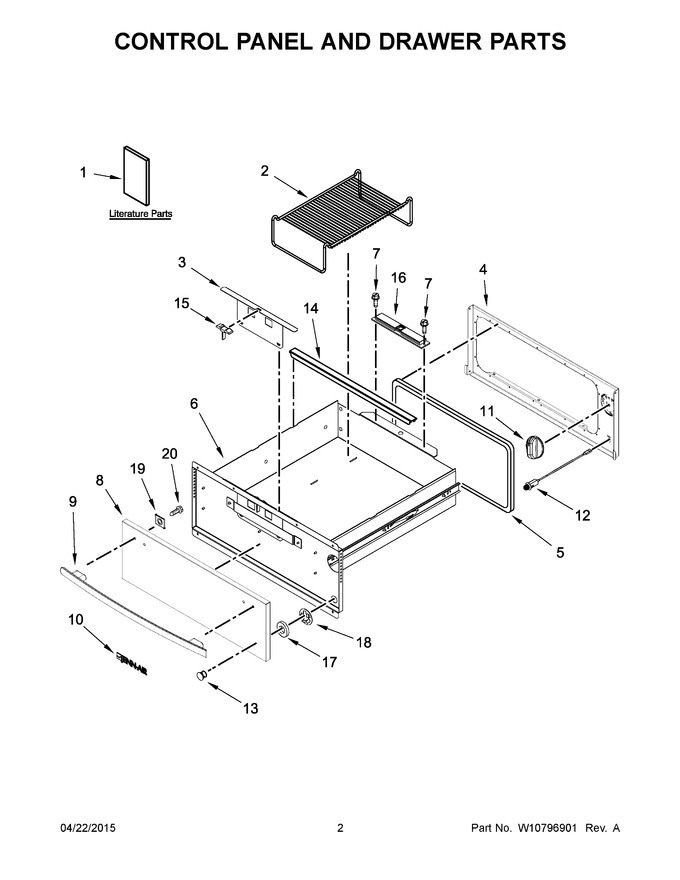

02 - Control Panel And Drawer Parts


03 - Internal Warming Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10736617		Guide, Use & Care		Appelez-nous	-
2	8273277		Rack, Warming Drawer				$ 99.80
3	W10162376		Slide, Vent				$ 96.82
4	W10515383		Panel, Front				$ 130.82
5	W10164998		Gasket, Drawer				$ 36.60
6	WP9763646		Assembly, Drawer   (Replaces: 9763646)			Immediately	$ 462.79
7	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
8	W10489559		Skin, Drawer				$ 255.95
9	W11195001		Assembly, Handle (stainless)   (Replaces: W10551013)				$ 206.51
10	WPW10214168		Badge (stainless)   (Replaces: W10214168)				$ 77.36
11	W10274390		Knob, Thermostat				$ 54.63
12	W10489562		Light, Indicator				$ 91.92
13	4456314		Lens, Indicator				$ 91.89
14	W10409138		Rail, Pan			Immediately	$ 104.96
15	9763125		Grip, Vent				$ 72.07
16	W10035910		Magnet				$ 181.67
17	4456861		Spacer, Lens				$ 6.66
18	4456862		Clip, Lens Retainer				$ 6.63
19	W11190816		Spacer, Handle   (Replaces: 3823F017-45)				$ 15.69
20	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 7.90
1A	W10064720		Sheet, Tech		Appelez-nous	-
1B	W10736619		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
