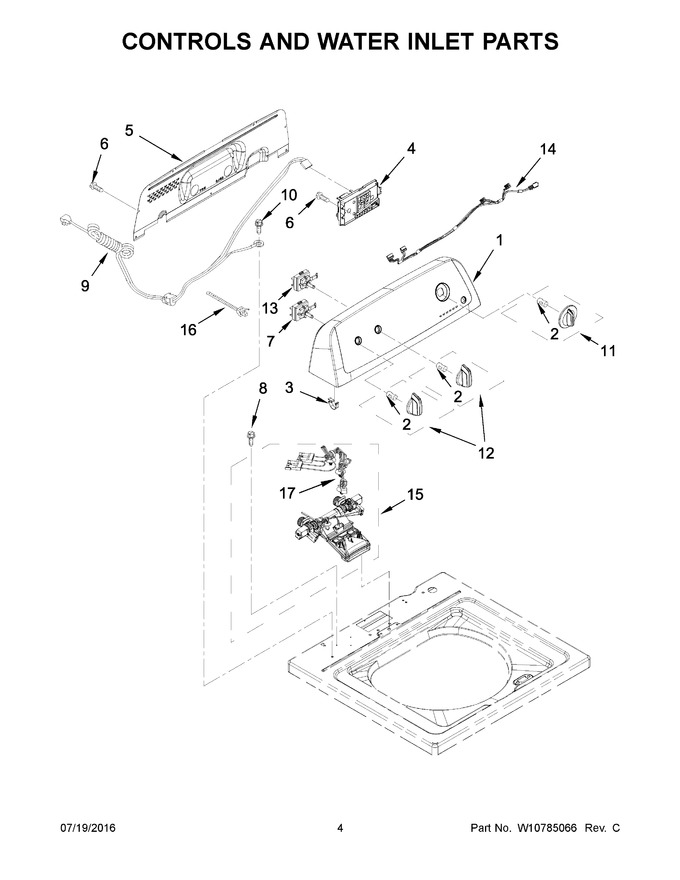

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10768850 | Panel, Console |
|
$ 345.03 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 4 | W11116504 | Control Unit Assembly, Machine & Motor (Replaces: W10785635) |
|
$ 487.87 | |||||
| 5 | W10409320 | Panel, Console Rear Cover |
|
$ 237.41 | |||||
| 6 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 7 | WPW10414397 | Switch, Rotary Encoder (3 Position) (Replaces: W10414397) |
|
$ 122.49 | |||||
| 8 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 6.80 | ||||
| 9 | W10850133 | Cord, Power (Replaces: W10711784) |
|
Immediately | $ 121.53 | ||||
| 10 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 11 | WPW10711289 | Assembly, Timer Knob (white) (Replaces: W10711289) |
|
Immediately | $ 7.50 | ||||
| 12 | WPW10453947 | Assembly, Control Knob (white) (Replaces: W10453947) |
|
$ 49.28 | |||||
| 13 | W10859568 | Switch, Water Level (Replaces: W10414411) |
|
Immediately | $ 169.49 | ||||
| 14 | W11256701 | Harness, Upper (Replaces: W10694679) |
|
$ 166.57 | |||||
| 15 | W11038689 | Inlet Assembly, Water (Replaces: W10776841) |
|
Immediately | $ 127.65 | ||||
| 16 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 17 | W10678671 | Harness, Valve |
|
$ 166.83 |
