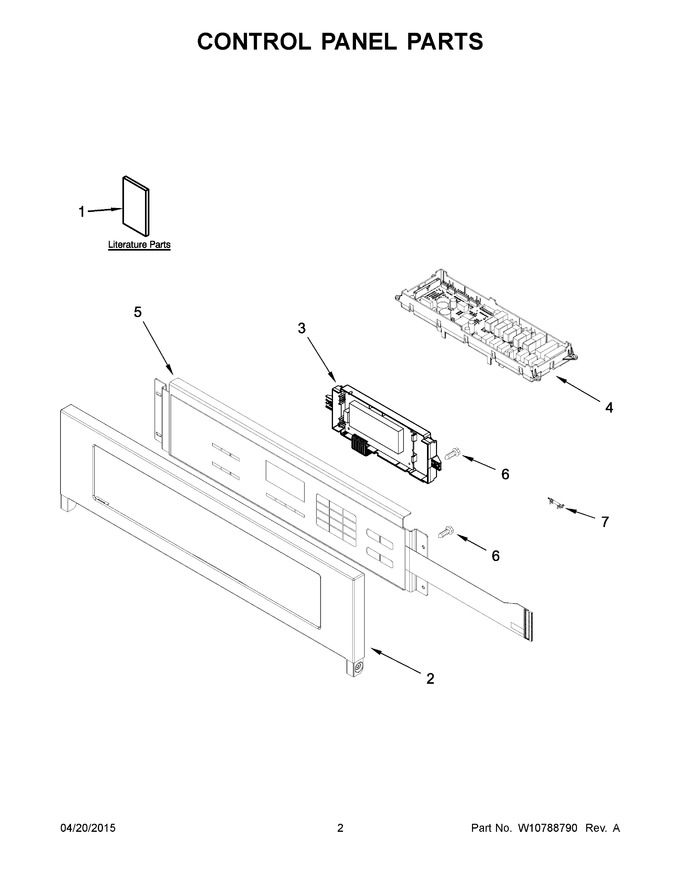

02 - Control Panel Parts
03 - Oven Parts
04 - Top Venting Parts
05 - Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10758300 | Guide, Use & Care |
|
- | |||||
| 2 | W10704699 | Assembly, Control Panel Skin (stainless) |
|
$ 374.71 | |||||
| 3 | W10803991 | Assembly, Display (Replaces: W10752315) |
|
Immediately | $ 378.04 | ||||
| 4 | W10803993 | Control (Replaces: W10721211) |
|
$ 381.47 | |||||
| 5 | W10694991 | Assembly, Membrane (stainless) |
|
$ 689.68 | |||||
| 6 | WP3400832 | Screw (black) (Replaces: 3400832) |
|
Immediately | $ 7.36 | ||||
| 7 | W11025102 | Fuse, Thermal (Replaces: W10794084) |
|
Immediately | $ 18.14 | ||||
| 1A | W10758285 | Instructions, Installation |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10691785 | Harness, Door Latch |
|
- | |||||
| NI | W11157775 | Harness, Eol (mrc) (Replaces: W10409840) |
|
$ 208.52 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | 4451761 | Support, Wiring |
|
- | |||||
| NI | W10691761 | Harness, Main |
|
$ 280.83 |
