SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel And Drawer Parts

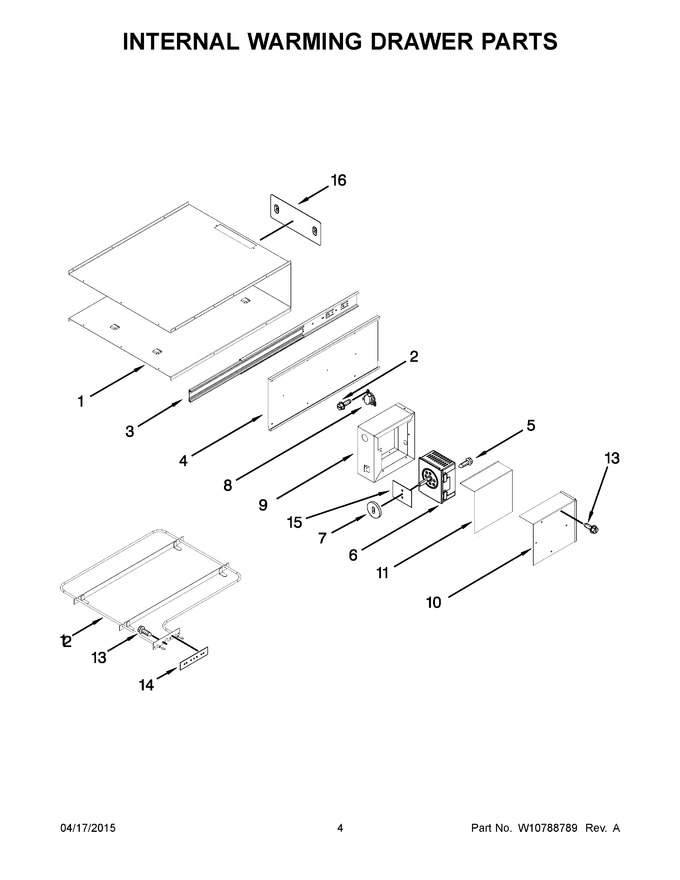

03 - Internal Warming Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10684521		Wrapper		Appelez-nous	-
2	313806		Screw		Appelez-nous	-
3	WPW10188461		Assembly, Slide   (Replaces: W10188461)			Immediately	$ 121.53
4	W10299387		Wall, Cavity (left)		Appelez-nous	-
5	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 6.57
6	W11708324		Control   (Replaces: W10121337)				$ 165.42
7	W10117362		Gasket, Control		Appelez-nous	-
8	9763126		Fuse, Thermal				$ 85.04
9	9763122		Enclosure, Electric		Appelez-nous	-
10	W10182072		Cover, Enclosure   (Replaces: 9763121)				$ 54.23
11	W10182072		Gasket, Enclosure   (Replaces: W10117363)				$ 54.23
12	W10751754		Element, Heating		Appelez-nous	-
13	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
14	W10118049		Seal, Heating Element		Appelez-nous	-
15	W10118113		Seal, Switch		Appelez-nous	-
16	W10118073		Shield, Heat		Appelez-nous	-
4A	9762307		Wall, Cavity (right)				$ 78.87
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 6.80
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10129043		Harness, Main				$ 293.02
NI	W10129023		Cord, Power		Appelez-nous	-
NI	W10131847		Sensor, Sealed				$ 229.51
NI	4452601		Relief, Strain		Appelez-nous	-
