SELECT A DIAGRAM

01 - Cover Sheet

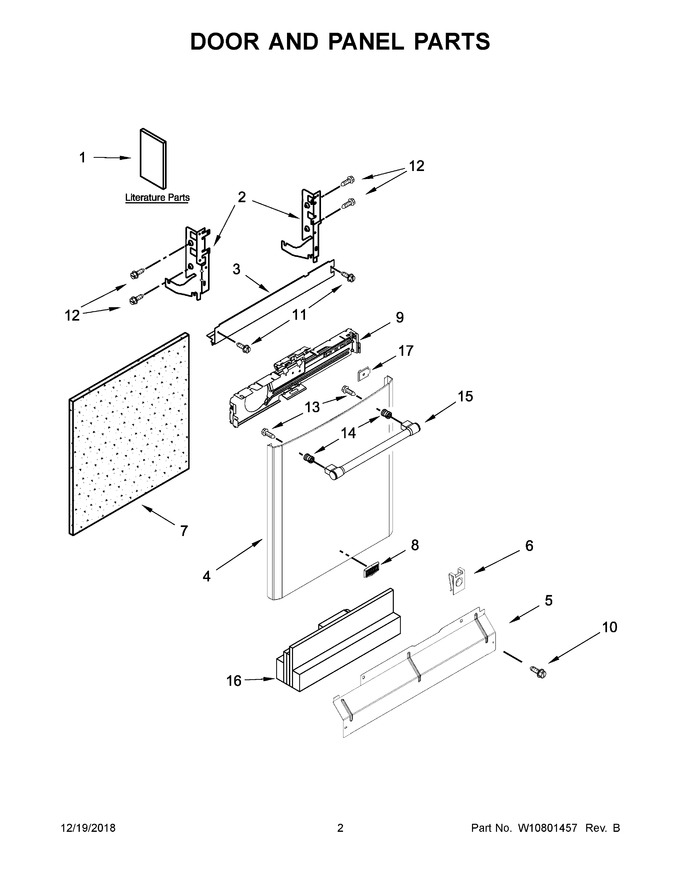

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806906		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 128.15
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 29.59
4	W11239549		Panel Front (includes Items 8, 13, 14 & 17) (stainless)   (Replaces: W11034315)		Appelez-nous	-
5	W11763736		Access Panel (black)   (Replaces: W10852733)			Immediately	$ 38.03
6	W10910629		U-nut   (Replaces: W10853886)				$ 7.78
7	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 58.73
8	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 38.12
9	W11116870		Bracket, Control   (Replaces: W10641745)				$ 80.96
10	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 7.36
11	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
12	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
13	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 6.80
14	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 7.98
15	W10914192		Handle (stainless)   (Replaces: W10786153)				$ 121.12
16	W11223838		Insulation, Four Layer   (Replaces: W10735304)			Immediately	$ 39.52
17	W10319007		Light, Pipe				$ 64.80
1A	W10921055		Energy Guide		Appelez-nous	-
1B	W10708712		Use & Care Guide		Appelez-nous	-
1C	W10610054		Tech Sheet, English		Appelez-nous	-
1D	W10610057		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 128.02

    View Diagram in Separate Window       Print Part List
