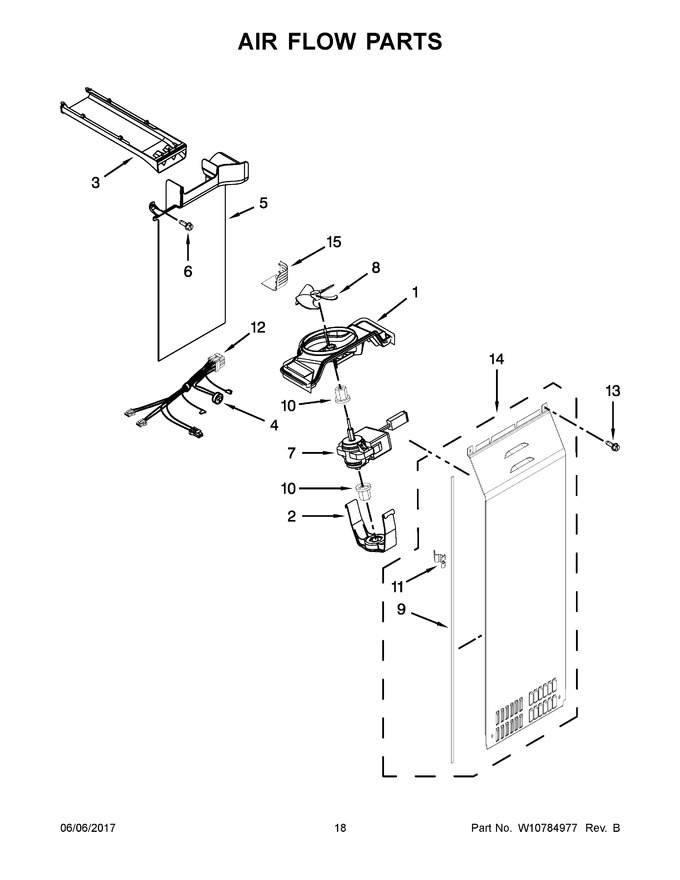

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11807265 | Scroll, Fan (Replaces: W10251462) |
|
$ 27.63 | |||||
| 2 | 8201663 | Retainer, Fan Motor (Replaces: 2223733) |
|
$ 143.34 | |||||
| 3 | W10515038 | Duct, Upper Air (Replaces: W10550199) |
|
$ 328.15 | |||||
| 4 | N/P | Bi-metal Defrost (not Serviced) |
|
- | |||||
| 5 | WPW10382898 | Duct, Freezer Air (Replaces: W10382898) |
|
$ 77.78 | |||||
| 6 | WP489478 | Screw (Replaces: W10001260) |
|
$ 7.36 | |||||
| 7 | W11833137 | Motor, Fan (Replaces: W10556724) |
|
Immediately | $ 107.45 | ||||
| 8 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 9 | W10240370 | Gasket, Evaporator Cover |
|
- | |||||
| 10 | W11669856 | Grommet, Motor (Replaces: W10449920) |
|
Immediately | $ 14.34 | ||||
| 11 | W11232019 | Clip, Evaporator Cover (Replaces: W10369602) |
|
Immediately | $ 10.25 | ||||
| 12 | W11449066 | Assembly, Evaporator Fan Wire (includes Bi-metal Defrost) (Replaces: W10679946) |
|
$ 90.28 | |||||
| 13 | WP693995 | Screw (Replaces: W10142292) |
|
Immediately | $ 6.80 | ||||
| 14 | WPW10388268 | Cover, Evaporator (Replaces: W10388268) |
|
$ 230.78 | |||||
| 15 | W10260382 | Cover, Light |
|
$ 72.52 |
