SELECT A DIAGRAM

01 - Unit, Literature


02 - Air Flow And Control


03 - Cabinet


04 - Optional

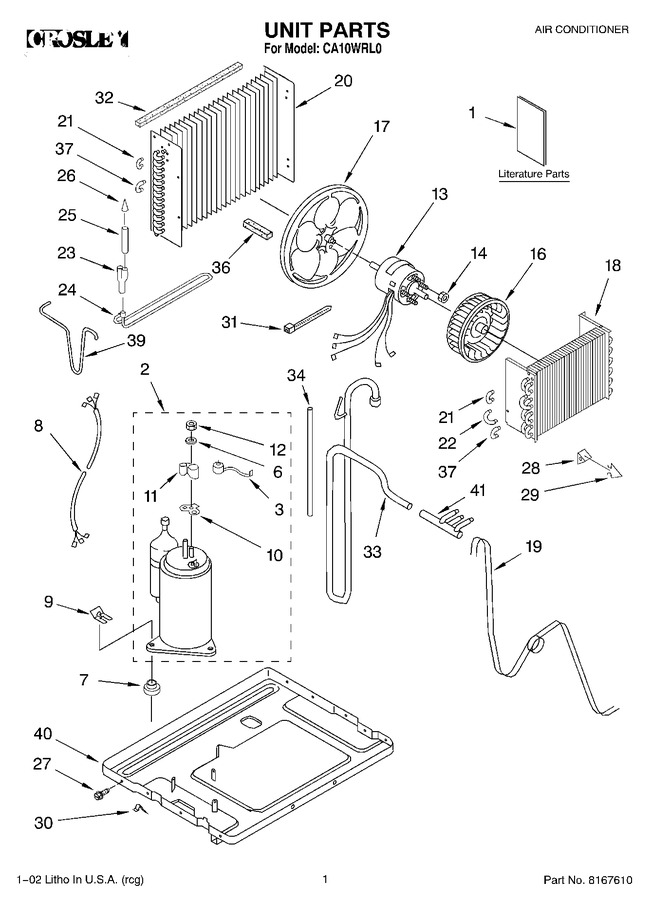

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8031275		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT1184505		Use & Care Guide		Appelez-nous	-
1	LIT1185750		Energy Guide		Appelez-nous	-
2	1185603		Compressor		Appelez-nous	-
3	1185750		Overload		Appelez-nous	-
6	1182120		Gasket, Nut		Appelez-nous	-
7	950212		Grommet		Appelez-nous	-
8	8031579		Wiring Harness, Compressor		Appelez-nous	-
9	8011446		Clip, Compressor		Appelez-nous	-
10	1182118		Gasket, Terminal Cover		Appelez-nous	-
11	1184748		Cover, Terminal		Appelez-nous	-
12	W10833054		Nut, Hex   (Replaces: 1186128)		Appelez-nous	-
13	1184411		Motor, Fan		Appelez-nous	-
14	WP488130		Nut, Hex Keps   (Replaces: 488130)				$ 6.59
16	8031154		Wheel, Blower		Appelez-nous	-
17	1156979		Blade, Fan				$ 61.53
18	8031236		Evaporator		Appelez-nous	-
19	8031267		Tube, Restrictor		Appelez-nous	-
20	8031230		Condenser		Appelez-nous	-
21	8031222		Bend, Return Evaporator (5) Condenser (1)		Appelez-nous	-
22	8031224		Bend, Return (5)		Appelez-nous	-
23	947364		Tube, Flow Divider		Appelez-nous	-
24	8031238		Tube, Wet Loop		Appelez-nous	-
25	950816		Tube, Outlet (includes No. 26)		Appelez-nous	-
26	49599		Strainer, Tube		Appelez-nous	-
27	488624		Screw, 8-15 X 3/8		Appelez-nous	-
28	996773		Anticipator, Temperature		Appelez-nous	-
29	475577		Clip, Temperature Anticipator		Appelez-nous	-
30	471088		Clamp, Tube		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
32	1181735		Seal, Condenser Top		Appelez-nous	-
33	1185668		Tube, Suction		Appelez-nous	-
34	1185481		Insulation, Suction Tube		Appelez-nous	-
36	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
37	8031223		Bend, Return Condenser (15) Evaporator (5)		Appelez-nous	-
39	1185669		Tube, Discharge		Appelez-nous	-
40	8031331		Base		Appelez-nous	-
41	8031259		Tube, Flow Divider		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
