01 - Cover Sheet

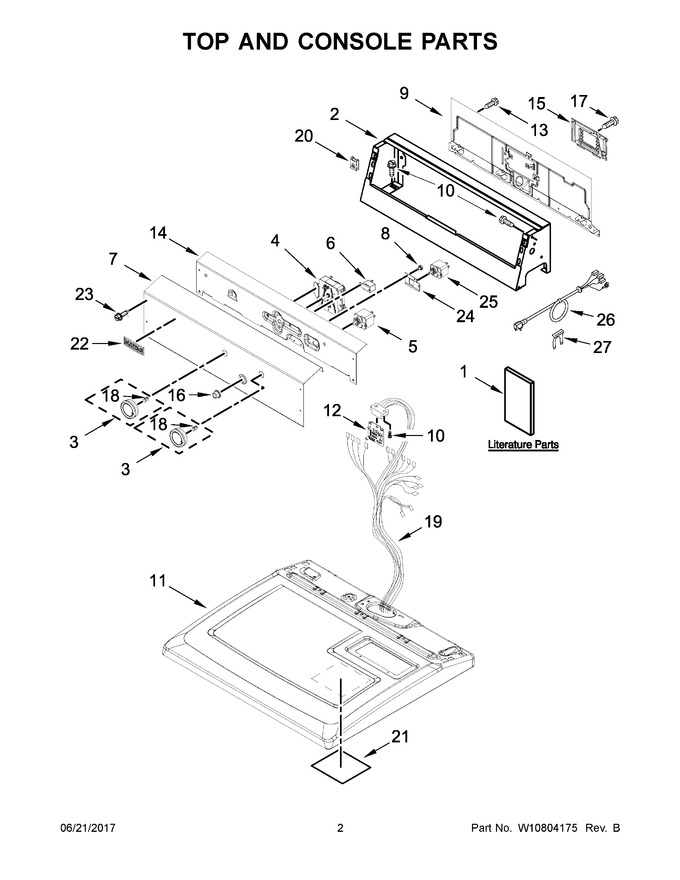

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10755022 | Installation Instructions |
|
- | |||||
| 2 | W11124005 | Console (Replaces: W10461095) |
|
$ 214.58 | |||||
| 3 | W10771940 | Assembly, Control Knob (grey) |
|
$ 48.06 | |||||
| 4 | WPW10185992 | Timer Assembly (60 Hz.) (Replaces: W10185992) |
|
Immediately | $ 164.31 | ||||
| 5 | WP8578352 | Switch, Rotary (5 Pos) (Replaces: 8578352) |
|
$ 214.07 | |||||
| 6 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 7 | W10763072 | Fascia |
|
- | |||||
| 8 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 9 | 285909 | Panel, Rear Console (Replaces: 8317305) |
|
$ 235.28 | |||||
| 10 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 11 | W10772880 | Top (white) |
|
$ 157.51 | |||||
| 12 | WPW10476828 | Control, Electronic (Replaces: W10476828) |
|
Immediately | $ 296.94 | ||||
| 13 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 14 | W10738304 | Bracket, Back |
|
- | |||||
| 15 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 121.29 | |||||
| 16 | W10817851 | Button, Push To Start |
|
- | |||||
| 17 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 18 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 19 | W10767817 | Harness, Main |
|
$ 155.24 | |||||
| 20 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 7.29 | |||||
| 21 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 27.86 | |||||
| 22 | WPW10612926 | Badge (chrome) (Replaces: W10612926) |
|
Immediately | $ 35.64 | ||||
| 23 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.57 | |||||
| 24 | W10831297 | Bracket, Push To Start |
|
- | |||||
| 25 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 116.45 | ||||
| 26 | W11095079 | Cord, Power (Replaces: W10712171) |
|
Immediately | $ 124.42 | ||||
| 27 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 6.99 | ||||
| 1A | W10755024 | Guide, Use And Care |
|
- | |||||
| 1B | W10768746 | Wiring Diagram |
|
- | |||||
| 1C | W10771926 | Quick Start Guide |
|
- | |||||
| 1D | W10772881 | Energy Guide |
|
- |
