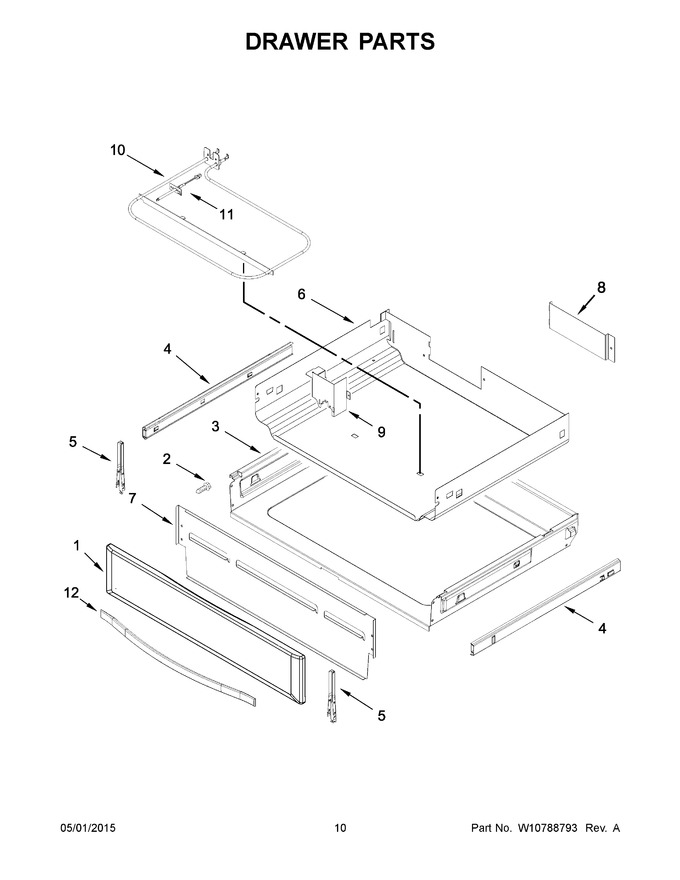

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10330056 | Panel, Drawer Front (white) |
|
$ 165.18 | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 3 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 124.34 | ||||
| 4 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 97.38 | ||||
| 5 | WPW10318027 | Bracket, Drawer (Replaces: W10318027) |
|
$ 108.14 | |||||
| 6 | W10634260 | Enclosure, Warming |
|
Immediately | $ 188.12 | ||||
| 7 | W10748083 | Panel, Inner Drawer |
|
$ 157.33 | |||||
| 8 | W10325438 | Cover, Panel |
|
$ 141.29 | |||||
| 9 | W10634259 | Cover, Wire |
|
$ 79.06 | |||||
| 10 | WPW10323181 | Element, Warm (Replaces: W10323181) |
|
$ 118.87 | |||||
| 11 | WPW10131827 | Sensor, Oven (Replaces: W10131827) |
|
$ 248.02 | |||||
| 12 | WPW10618239 | Handle, Door (stainless) (Replaces: W10254687) |
|
Immediately | $ 171.80 | ||||
| 1A | W11190206 | Panel, Drawer Front (black) (Replaces: W10330057) |
|
$ 182.50 | |||||
| 1B | W11190206 | Panel, Drawer Front (stainless) (Replaces: W10330057) |
|
$ 182.50 | |||||
| 4A | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 97.32 |
