View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Unit Parts

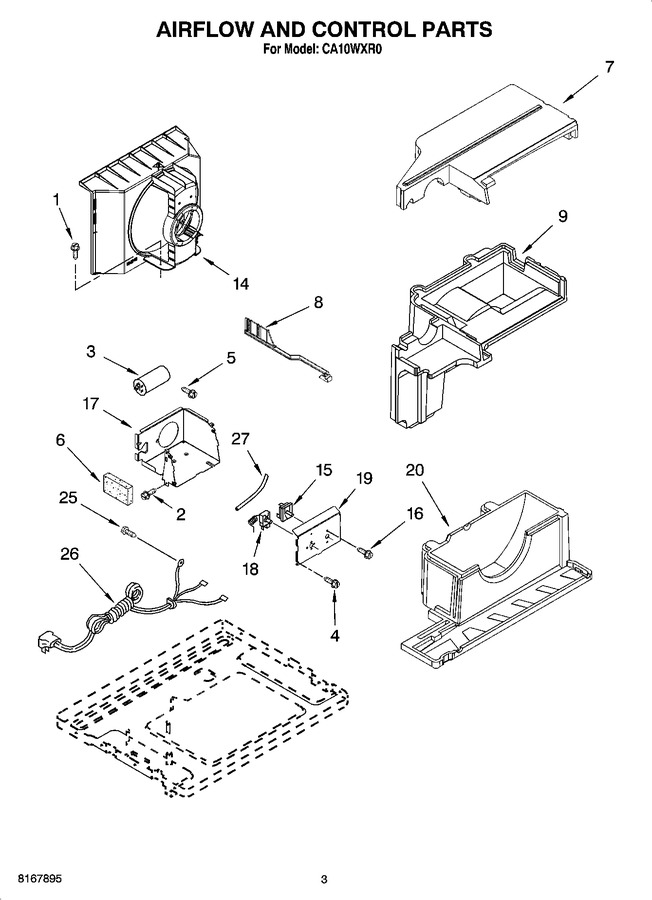

02 - Air Flow And Control Parts
03 - Cabinet Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw, (Replaces: 8209219) |
|
Immediately | $ 7.43 | ||||
| 2 | WP3196557 | Screw, (Replaces: 8209212) |
|
Immediately | $ 7.16 | ||||
| 3 | WP1186509 | Capacitor, Running (Replaces: 8209285) |
|
$ 219.99 | |||||
| 4 | 8209287 | Screw |
|
- | |||||
| 5 | 8209288 | Screw |
|
- | |||||
| 6 | 8209289 | Seal, Control Box |
|
- | |||||
| 7 | 8209290 | Hood, Air Housing |
|
- | |||||
| 8 | 8209303 | Door, Exhaust |
|
- | |||||
| 9 | 8209292 | Housing, Top |
|
- | |||||
| 14 | 8209293 | Shroud, Condenser |
|
- | |||||
| 15 | 1186502 | Switch, Rotary |
|
- | |||||
| 16 | 488734 | Screw, |
|
- | |||||
| 17 | 8209294 | Box, Control |
|
- | |||||
| 18 | 8031115 | Thermostat |
|
$ 131.31 | |||||
| 19 | 1187149 | Panel, Control |
|
- | |||||
| 20 | 8209298 | Housing, Air- Bottom |
|
- | |||||
| 25 | 8209299 | Screw |
|
- | |||||
| 26 | 8209302 | Cable, Appliance |
|
- | |||||
| 27 | 8011238 | Sleeve, Insulator |
|
- |
