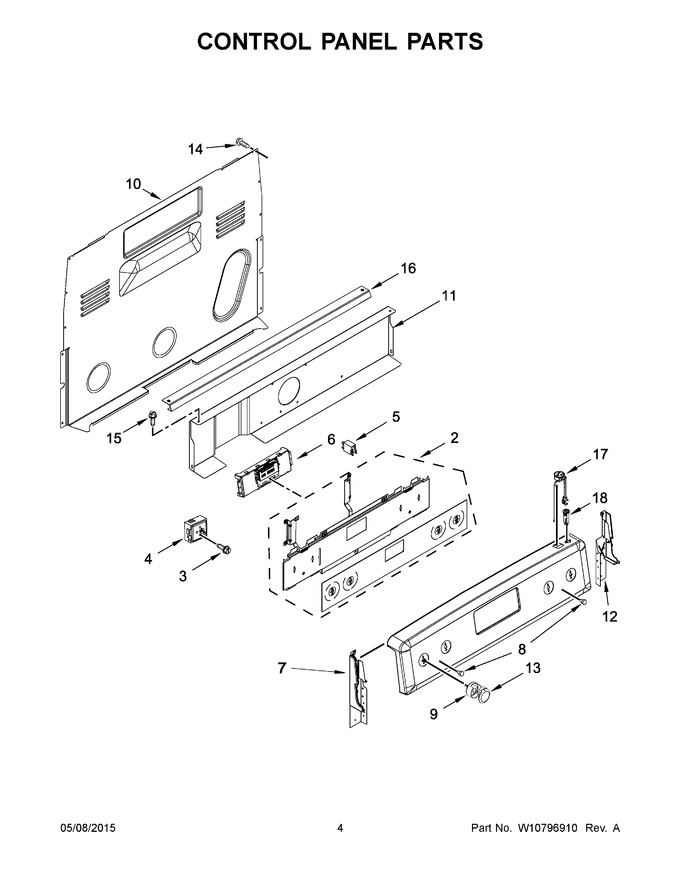

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10645851		Console, Panel (stainless)				$ 273.42
2	W10692154		Active Overlay Assembly (black)				$ 201.53
3	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
4	W10911303		Switch, Infinite (single) (right Rear)   (Replaces: W10578768)			Immediately	$ 103.74
5	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 91.76
6	W10804973		Control. Maxwell   (Replaces: W10699279)				$ 272.21
7	W11404310		End Cap, Left (black (left Hand))   (Replaces: W10409002)				$ 69.30
8	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
9	W11368920		Bezel   (Replaces: W10645811)			Immediately	$ 54.50
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W10134247		Shield, Heat			Immediately	$ 322.94
12	W11219665		End Cap, Right (black (right Hand))   (Replaces: W10184438)			Immediately	$ 40.65
13	W10645810		Knob (stainless)				$ 103.73
14	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 13.28
15	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 13.25
16	W10525121		Bracket, Console Mounting				$ 88.97
17	W10861164		Receptacle (black)   (Replaces: W10488078)			Immediately	$ 16.62
18	WP9757602		Breaker, Circuit (black)   (Replaces: 9757602)			Immediately	$ 54.82
4A	W10857622		Switch, Infinite (dual) (left Front & Right Front)   (Replaces: W10437092)			Immediately	$ 215.89
4B	W10917724		Switch, Infinite (hyper) (left Rear)   (Replaces: W10437094)			Immediately	$ 116.42
